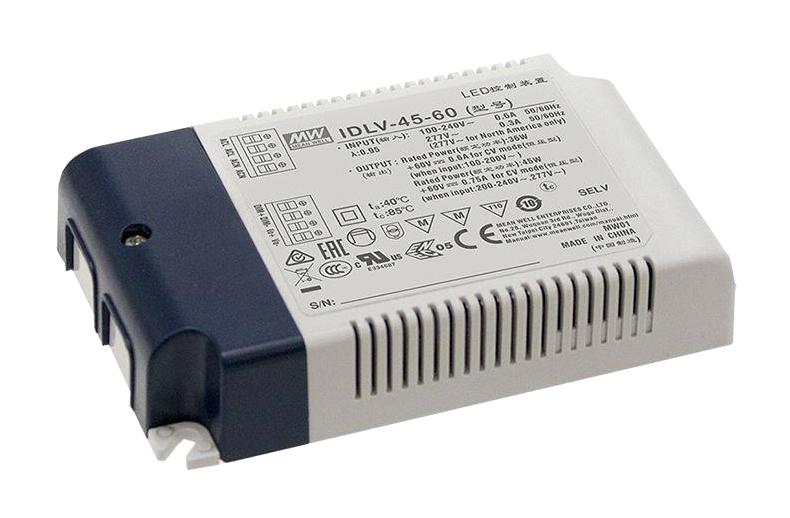

MEAN WELL IDLV4512 LED Driver
The IDLV-45 series is a 45W LED driver designed for indoor LED lighting, architectural, and decorative applications. Operating from 90~295VAC, it features a constant voltage PWM output with a frequency of 1KHz, enabling smooth dimming and high efficiency up to 90%. Its fanless design supports a wide temperature range from -20°C to +85°C, offering reliable operation for LED strips and architectural lighting. Equipped with optional 2-in-1 dimming and auxiliary DC output, this driver provides versatility for various LED systems with three-year warranty for durability.
MEAN WELL IDLV4512 LED Driver Specifications:
- DC Voltage: 12V, 24V, 36V, 48V, 60V
- Rated Current: 3.0A, 1.88A, 1.254A, 0.944A, 0.754A
- Rated Power: 36W, 45W, 45W, 45W, 45W
- Dimming Range: 0~100%
- Output Voltage Tolerance: 10%
- PWM Frequency (Typ): 4KHz
- Voltage Range: 99~295VAC
- Efficiency (Typ): 84% to 90%
- Inrush Current: 30A at 230VAC
- Leakage Current: <0.75mA/277VAC
- No Load Power Consumption: <0.5W (Blank-Type)
- Operating Temp.: -20°C to +85°C
- Dimensions: 120*75*25mm
- Safety & Isolation Voltage: 3.75KVAC (I/P-O/P)
- Certifications: EN55015, EN61000-3-2, EN61000-3-3, GB17743
- MTBF: 386.59Khrs (min.)
Buy the Buy Mean Well LED Driver Part Number IDLV-45 Series Online
Order the Mean Well IDLV-45 series LED driver online now to ensure high efficiency, reliable PWM dimming, and durable operation. Perfect for indoor architectural and decorative lighting systems, this 45W driver supports adjustable voltage from 12V to 60V with a wide input voltage range of 90~295VAC. Its fanless design guarantees quiet operation across temperatures from -20°C to +85°C, making it suitable for various environments. With a three-year warranty, fast delivery, and easy installation, get this versatile LED driver for your lighting project today.
Get Mean Well IDLV-45 LED driver today—built for high efficiency, reliable dimming, and long-lasting indoor LED lighting performance.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV4512?
You can click on the BUY or RFQ button to purchase IDLV4512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV4512?
You can download the IDLV4512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV4512?
MEAN WELL
