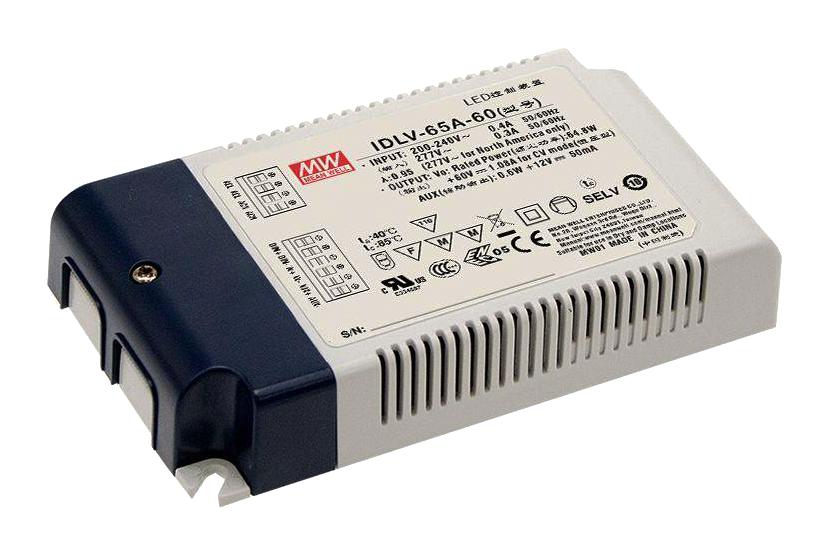

MEAN WELL IDLV65A36 LED Driver
The IDLV-65 series is a 65W high-efficiency LED driver designed for indoor lighting and decorative applications. Featuring a constant voltage PWM output at 1KHz frequency, it supports models with various rated voltages from 12V to 60V. It operates from 180 to 295VAC, offers 85-90% efficiency, and includes built-in active PFC and multiple dimming options like 0-10Vdc and PWM. Its fanless, compact plastic housing enables reliable performance in temperatures from -20°C to +85°C, making it ideal for architectural and LED strip lighting projects.
MEAN WELL IDLV65A36 LED Driver Specifications:
- Power: 65W
- Input Voltage: 180~295VAC
- Output Voltage: 12V, 24V, 36V, 48V, 60V (model dependent)
- Rated Current: 4.2A at 12V, 1.8A at 24V, 1.354A at 36V, 1.084A at 48V, 1.084A at 60V
- Efficiency: up to 90%
- PWM Frequency: 1KHz (+20%)
- Dimming Range: 0~100%
- Output Voltage Tolerance: ±10%
- Dimensions: 130×75×25mm (L×W×H)
- Operating Temp.: -20°C to +85°C
- Protection: Over Current (105-115%), Short Circuit, Over Temperature
- Power Factor: >0.9 at full load
- Leakage Current: <0.75mA at 277VAC
- Environment: 20-90% RH non-condensing
Buy the Buy Mean Well LED Driver DLV-65 Series Part Number IDLV65A36 Online
Purchase the Mean Well DLV-65 series LED driver online today for your lighting installation needs. This 65W high-efficiency driver features PWM output, multiple dimming options, and robust protection for indoor LED lighting and architectural projects. Its compact design and wide temperature range from -20°C to +85°C ensure reliable operation in various environments. Enjoy fast delivery and dedicated customer support. Upgrade your lighting systems with proven quality and efficiency by ordering this versatile LED driver now.
Order your Mean Well SeriesIDLV-65 LED driver today and enhance your indoor lighting projects with reliable 65W PWM power supply.
Frequently Asked Questions
Where can I buy MEAN WELL IDLV65A36?
You can click on the BUY or RFQ button to purchase IDLV65A36 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part IDLV65A36?
You can download the IDLV65A36 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of IDLV65A36?
MEAN WELL
