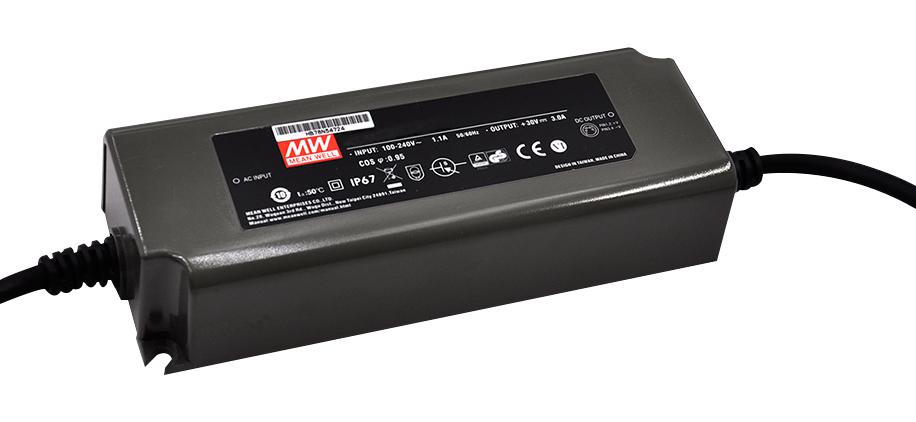

MEAN WELL OWA90E36 Waterproof Power Supply
The waterproof switching adaptor series OWA-90E provides 90W power with IP67 protection, ideal for damp and dusty environments. It supports universal input from 90VAC to 264VAC, featuring built-in active PFC and high efficiency up to 91%. Suitable for household appliances, robotic lawn mowers, and electronic devices, the no load power consumption is below 0.15W. Encased in a fully-potted silicone, it ensures excellent heat dissipation and rugged durability, withstanding temperatures from -40°C to +70°C, making it a reliable external power supply for demanding applications.
MEAN WELL OWA90E36 Waterproof Power Supply Specifications:
- Power: 90W
- Output Voltage: 36V
- Rated Current: 2.54A
- Ripple & Noise: 200mVp-p
- Voltage Tolerance: ±4.0%
- Line Regulation: 0.5%
- Load Regulation: 0.5-1.5%
- Input Voltage Range: 90 ~ 264VAC
- Frequency Range: 47 ~ 63Hz
- Efficiency: Up to 91%
- Protection: Short circuit, Over current, Over voltage, Over temperature
- Working Temperature: -40°C to +70°C
- Humidity: 20% to 95% RH non-condensing
- Dimensions: 171 x 63 x 37.5 mm
- Safety Standards: EN61558-1, EN60335-1, IP67
Buy the Buy Waterproof Power Supply Part Number OWA-90E36 Online
Discover the high-performance waterproof power supply suitable for damp and dusty environments. The OWA-90E series offers 90W of reliable output, universal AC input, and an IP67 waterproof rating. Its high efficiency up to 91%, built-in active PFC, and low no-load power consumption of less than 0.15W make it an energy-efficient choice. Perfect for household appliances, industrial equipment, or outdoor applications, this rugged power supply ensures stable operation in temperatures from -40°C to +70°C and is compliant with international safety standards to meet your demanding project needs.
Order your Waterproof Power Supply OWA-90E36 today and ensure reliable, dust-resistant power delivery for your rugged applications.
Frequently Asked Questions
Where can I buy MEAN WELL OWA90E36?
You can click on the BUY or RFQ button to purchase OWA90E36 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part OWA90E36?
You can download the OWA90E36 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of OWA90E36?
MEAN WELL
