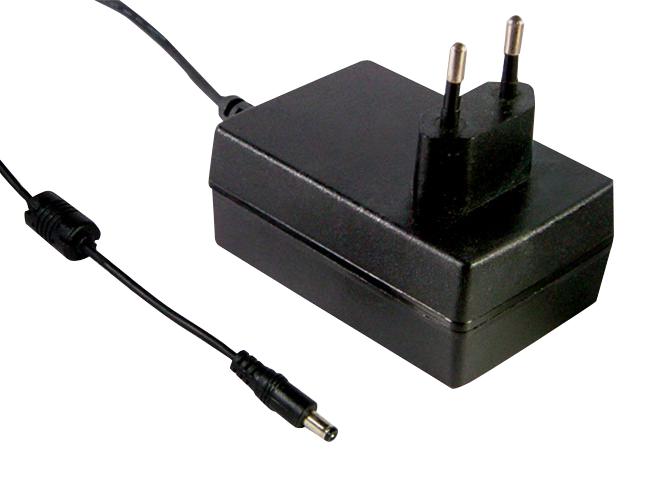

MEAN WELL GSM36E12P1J medical power adapter
GSM36E12P1J is a high-reliability 36W medical power adapter designed for direct contact with patients. It features universal input voltage from 80VAC to 264VAC, single output voltage of 12V, and a maximum current of 3A. Equipped with a 2-pin European plug, it complies with international safety standards, including MOPP isolation and low leakage current below 50µA. The adapter offers efficiency up to 88%, low no-load power consumption under 0.1W, and protection against overcurrent, overvoltage, and short circuits. It is ideal for portable medical devices like blood glucose meters, blood pressure monitors, nebulizers, and inhalers, ensuring safety and energy savings in medical environments.
MEAN WELL GSM36E12P1J medical power adapter Specifications:
- Input Voltage: 80VAC-264VAC, 47-63Hz
- Output Voltage: 12V
- Rated Current: 3A
- Power: 36W
- Ripple & Noise: 150mVp-p
- Voltage Tolerance: ±3%
- Line Regulation: ±1%
- Load Regulation: ±3%
- Efficiency: Up to 88%
- No-load Power Consumption: <0.1W
- Protection: Overload, Overvoltage, Short Circuit
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Safety Standards: UL60601-1, TUV EN60601-1, & IEC62368
- Leakage Current: <50µA at 264VAC
- Dimensions: 79mm x 54mm x 33mm
- Weight: 230g
- Certifications: Medical safety approvals, EMI compliance.
Buy the Medical Power Supply 12V – Reliable Power Adapter for Medical Devices
Purchase the GSM36E12P1J medical power adapter online today to ensure safety and reliability for your portable healthcare devices. This 36W unit features a 12V output, universal input voltage from 80VAC to 264VAC, and a high efficiency rating of up to 88%. With full safety certifications, low leakage current, and protections against overcurrent and overvoltage, it offers optimal performance in medical environments. Its compact design makes installation simple and contributes to energy savings, making it an essential component for modern medical equipment.
Buy GSM36E12P1J now and experience unmatched reliability and energy-efficient performance for your portable medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36E12P1J?
You can click on the BUY or RFQ button to purchase GSM36E12P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36E12P1J?
You can download the GSM36E12P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36E12P1J?
MEAN WELL
