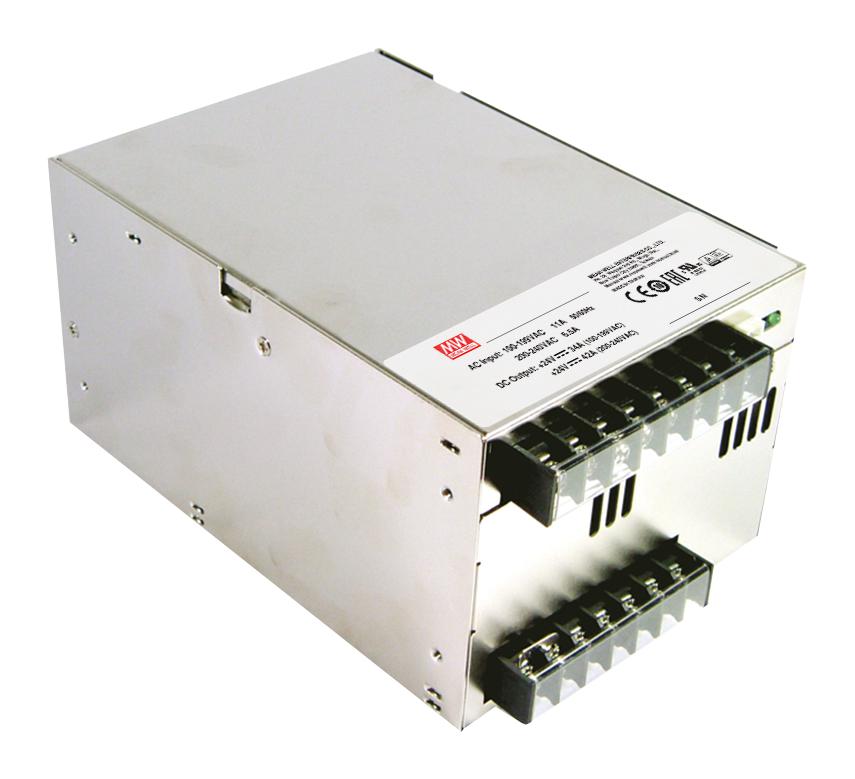

MEAN WELL PSPA100048 Industrial Power Supply
The PSPA-1000 series is a 1KW enclosed AC/DC power supply with high efficiency up to 94%, capable of operating from 90V to 264VAC input voltage. It delivers rated outputs between 12V and 48V with power ratings up to 1008W and supports parallel operation for up to 4000W. Features include active PFC, remote ON-OFF control, remote sense, current sharing, and built-in fan for cooling. Suitable for factory automation, test equipment, laser machines, and various industrial applications, it offers wide temperature and humidity tolerance, ensuring reliable performance in demanding environments.
MEAN WELL PSPA100048 Industrial Power Supply Specifications:
- Power Rating: 1008W
- Input Voltage Range: 90~264VAC
- Output Voltage: 12V, 15V, 24V, 48V (models available)
- Rated Current: 80A (12V), 64A (15V), 42A (24V), 21A (48V)
- Ripple & Noise: Max 150mVp-p (12V), 450mVp-p (15V), 200mVp-p (24V), 250mVp-p (48V)
- Efficiency: Up to 94%
- Operating Temperature: -20°C to +70°C (derating applied above 50°C)
- Built-in Fan Cooling, Full Range AC Input
- Parallel Operation: Up to 4000W (3+1 units)
- Remote ON-OFF and remote sense functions included
- Protections: Overvoltage, Overload, Over temperature, Short circuit
- Dimensions: 470 x 120 x 93 mm
- Certifications: UL62368-1, TUV EN62368-1, BSMI CNS14336-1
- Vibration Tolerance: 10-500Hz, 2-10min/axis
Buy the Buy Mean Well Power Supply Part Number PSPA-100048 Online
Secure your industrial automation setups with the high-quality Mean Well PSPA-1000 power supply. Designed for reliability and efficiency, it features active PFC, remote control, parallel operation, and robust protections. Suitable for laser, measurement, and factory automation equipment, this power supply operates from 90VAC to 264VAC with up to 94% efficiency, ensuring optimal performance in demanding environments. Purchase online today for fast delivery and trusted quality, taking your installation to the next level with a proven component built for longevity and precision.
Get Mean Well PSPA-1000 today—built for industrial automation and long-lasting durability.
