MEAN WELL RPS3024 Medical Power Supply Module
RPS-30 is a 30W medical power supply with high reliability and compact 3x2 inch footprint. It accepts 80-264VAC input and provides various output voltages from 3.3V to 48V, achieving up to 91% efficiency with very low no-load power consumption below 0.1W. Suitable for Class II systems with no FG, it conforms to international medical safety standards, featuring low leakage current under 100A and EMC compliance, ideal for BF-rated medical devices like monitors, hemodialysis machines, sleep apnea devices, and oral irrigators, ensuring safety and performance in sensitive medical environments.
MEAN WELL RPS3024 Medical Power Supply Module Specifications:
- Input Voltage: 80-264VAC, 47-63Hz
- Output Power: 30W
- Output Voltage Options: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Rated Current: 6A (3.3V, 5V), 4A (7.5V), 2.5A (12V), 2A (15V), 1.254A (24V), 0.625A (48V)
- Ripple & Noise: 80mVp-p to 300mVp-p depending on voltage
- Efficiency: Up to 91%
- Leakage Current: Less than 100A
- Protection: Short circuit, Overload, Over voltage
- Operating Temperature: -30°C to +70°C with derating
- Dimension: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Safety Standards: ANSI/AAMI ES60601-1, TUV EN60601-1, EN60601-1-1
- Isolation: 2xMOPP, withstand voltage 4KVAC
- Humidity: 20% to 90%, Storage -40°C to +85°C

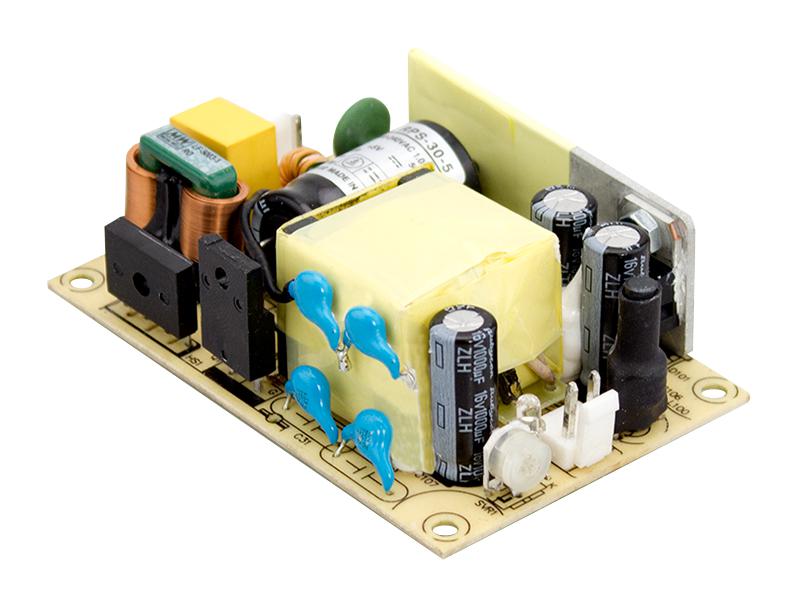

Buy the Buy Medical Equipment Power Supply Part Number RPS3024 Online
Purchase the RPS-30 medical power supply online today to ensure your medical devices operate with high reliability and safety. This compact, efficient power supply offers multiple output voltages, low leakage current, and compliance with international medical safety standards. Designed for applications like monitors, hemodialysis machines, sleep apnea devices, and oral irrigators, it delivers up to 91% efficiency, very low no-load power consumption, and robust protections. Get yours now for secure and dependable medical system operation.
Buy RPS-30 medical power supply now and enjoy high efficiency, safety, and reliable performance for sensitive medical devices.
