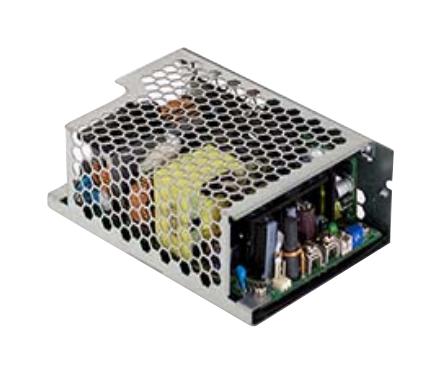

MEAN WELL RPS40018C Medical Power Supply
The RPS-400 is a high-reliability 400W medical power supply with a compact 5x3 inch PCB design, accepting 80~264VAC input and providing output voltages from 12V to 48V. It features up to 94% efficiency, ultra-low no-load power consumption below 0.5W, and conforms to international medical safety standards (2*MOPP). Suitable for BF contact medical equipment such as monitors, sleep apnea devices, and infusion pumps, it offers various models including enclosed and fan-assisted configurations, ensuring safe, stable operation up to 4000 meters altitude.
MEAN WELL RPS40018C Medical Power Supply Specifications:
- Power Output: 400W maximum
- Input Voltage: 80~264VAC, 47~63Hz
- Output Voltages: 12V, 15V, 18V, 24V, 27V, 36V, 48V with adjustable ranges
- Efficiency: Up to 94%
- No Load Power Consumption: <0.5W
- Leakage Current: Less than 160μA
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Operating Altitude: Up to 4000 meters
- Standby Voltage: 5V @ 0.6A or 1A (fan models)
- Cooling: Convection or forced air with 25 CFM fan options
- Isolation Level: 2xMOPP primary-secondary, 1xMOPP primary-earth, 1xMOPP secondary-earth
- Certifications: UL, ANSI/AAMI ES60601-1, IEC60601-1, EN60601-1, EMC EN55011
- Dimensions: PCB type 127x76.2x35mm, enclosed types vary (e.g., 130x86x43mm, 160x86x43mm)
- Weight: Ranges from 0.39kg to 0.64kg depending on model
- Cooling Fan: 12V/0.5A with optional fan on top or side
- Operating Temp: -30°C to +70°C (derating applicable)
Buy the Buy Mean Well RPS-400 Medical Power Supply Part Number RPS40018C Online
Purchase the Mean Well RPS-400 series online today to ensure your medical equipment operates with maximum reliability, efficiency, and safety. Featuring high efficiency, low no-load consumption, and multiple configurations including enclosed and fan-assisted models, this power supply meets all international medical standards (2*MOPP) and EMC regulations. Its compact footprint and wide input voltage range make it perfect for a variety of patient-contact devices like monitors, infusion pumps, and sleep apnea equipment. Secure your supply needs with fast, convenient online ordering and enjoy peace of mind with a 3-year warranty.
Buy Mean Well RPS-400 now and experience unmatched reliability and performance for medical and industrial systems.
Frequently Asked Questions
Where can I buy MEAN WELL RPS40018C?
You can click on the BUY or RFQ button to purchase RPS40018C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS40018C?
You can download the RPS40018C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS40018C?
MEAN WELL
