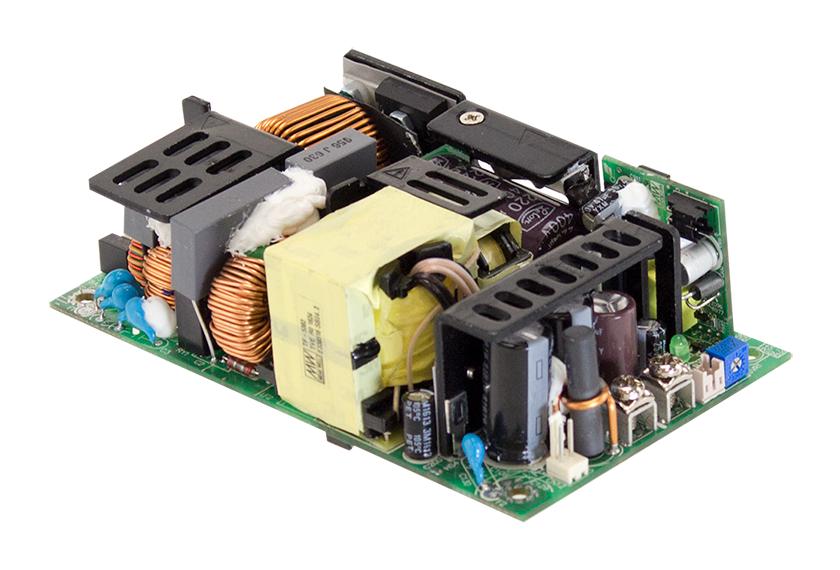

MEAN WELL RPS40036 Medical Power Supply
The RPS-400 is a highly reliable 400W medical power supply with a compact 5x3-inch PCB footprint, operating efficiently up to 94% with minimal no load power consumption below 0.5W. It accommodates input voltages from 80 to 264 VAC and provides output voltages ranging from 12V to 48V, suitable for Class I and Class II medical systems, including BF applications like dialysis machines and sleep apnea devices. It conforms to international safety standards, features low leakage current, and supports multiple configurations with options for enclosed or fan-cooled designs, making it ideal for hospital and medical device environments.
MEAN WELL RPS40036 Medical Power Supply Specifications:
- Input Voltage: 80~264VAC
- Output Voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Rated Power: 400W
- Efficiency: up to 94%
- No load Power Consumption: <0.5W
- Ripple & Noise: max. 200mVp-p
- Protection Features: Short circuit, Overload, Over voltage, Over temperature
- Operating Temperature: -30°C to +70°C
- Isolation Level: 2xMOPP (primary-secondary), 1xMOPP (primary-earth, secondary-earth)
- Overvoltage Protection: Yes
- Overload Protection: Yes
- Enclosure Options: PCB type, enclosed with fan on top or side
- Compliance: UL, ANSI/AAMI ES60601-1, IEC/EN60601-1, EN55011 EMC, CE certified
- Dimensions: Vary by model, approximately 130mm x 86mm x 43-66.5mm
- Mounting: Compatible with M3 screws, torque 4-6 Kgf-cm
- Operating Altitude: up to 4000 meters
Buy the Buy MEAN WELL RPS-400 Part Number RPS40036 Online
Purchase the MEAN WELL RPS-400 medical power supply online today to ensure reliable, efficient power delivery for critical healthcare applications. With a compact design and up to 94% efficiency, this 400W power supply supports a wide range of output voltages from 12V to 48V, making it suitable for various medical devices including dialysis, sleep apnea equipment, and patient monitors. Certified to international safety standards such as UL and IEC, and offering multiple enclosure options for flexibility, it guarantees safety, low leakage current, and consistent performance in medical environments. Fast shipping and expert support ensure a seamless purchasing experience.
Get MEAN WELL RPS-400 today—built for medical reliability, efficiency, and durability in demanding healthcare environments.
Frequently Asked Questions
Where can I buy MEAN WELL RPS40036?
You can click on the BUY or RFQ button to purchase RPS40036 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS40036?
You can download the RPS40036 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS40036?
MEAN WELL
