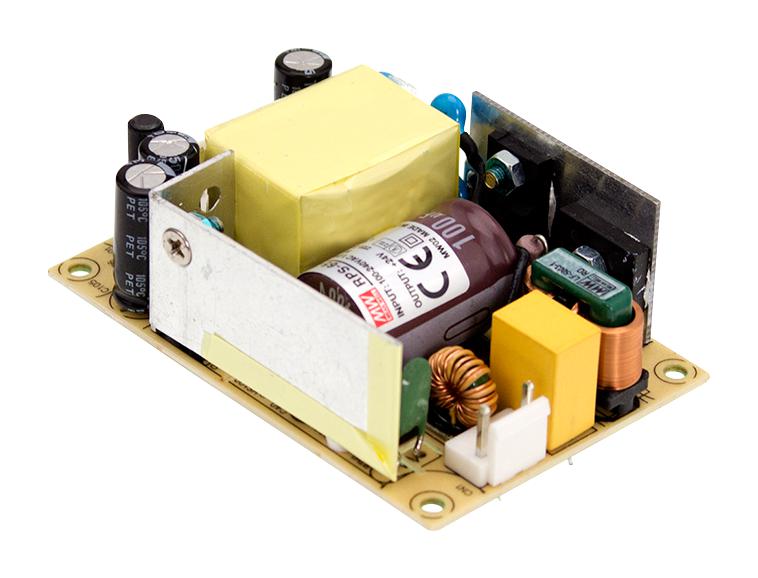

MEAN WELL RPS6575 Medical Power Supply
The RPS-65 is a compact, high-efficiency medical power supply delivering 65W of power within a 3x2-inch footprint. It accepts an AC input voltage range of 80-264VAC and provides multiple output voltages from 3.3V to 48V, supporting various medical device applications. The power supply features low leakage current under 100 microamperes, a high efficiency of up to 91%, and a no-load power consumption below 0.1W, meeting international medical safety standards and EMC requirements, making it ideal for BF-rated patient contact equipment with Class II installations and extensive protection features.
MEAN WELL RPS6575 Medical Power Supply Specifications:
- Input Voltage Range: 80-264VAC
- Output Power: 65W
- Output Voltages: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Max Current: 10A (3.3V, 5V), 8.8A (7.5V), 5.96A (12V), 4.77A (15V), 2.98A (24V), 1.49A (48V)
- Efficiency: Up to 91%
- Leakage Current: Less than 100A
- No Load Power Consumption: Below 0.1W
- Operating Temperature Range: -30°C to +70°C
- Input Frequency: 47-63Hz
- Dimension: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Protections: Short circuit, Overload, Over voltage
- Isolation Level: 2x MOPP (medical safety)
- Certification: UL, TUV, IEC60601-1, EN60601-1
Buy the Mean Well Series RPS Medical Power Supply: RPS-65
Upgrade your medical equipment with the reliable and efficient RPS-65 medical power supply. This 65W unit offers high efficiency up to 91%, low leakage current below 100 microamperes, and a compact 3x2-inch footprint. It features universal AC input, multiple output voltages, and comprehensive protections, making it suitable for BF-rated devices like hemodialysis machines, sleep apnea devices, and medical monitors. Designed to meet international standards, it ensures safety and performance in critical healthcare applications. Buy online today for seamless integration into your medical systems.
Order your Mean Well Series RPS-65 medical power supply today and ensure reliable, efficient power for your critical healthcare devices.
Frequently Asked Questions
Where can I buy MEAN WELL RPS6575?
You can click on the BUY or RFQ button to purchase RPS6575 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS6575?
You can download the RPS6575 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS6575?
MEAN WELL
