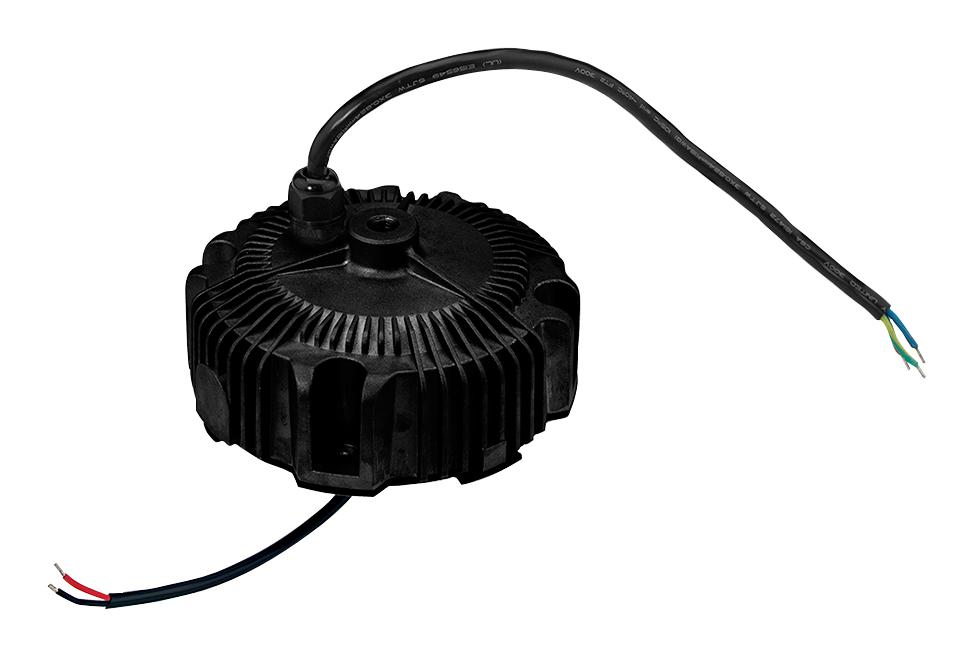

MEAN WELL HBG16048A LED Driver
The HBG-100 series is a high-efficiency, 100W LED driver designed for indoor and outdoor applications with IP67/IP65 ratings. Operating from 90~305VAC, it provides constant current outputs with adjustable voltage options between 24V and 60V. The fanless design ensures silent operation, with a lifetime exceeding 50,000 hours. It features advanced dimming options, active PFC, and robust protection features including over-voltage and over-temperature shutdown. Its rugged circular metal housing and wide temperature range of -40°C to +85°C make it suitable for various hazardous and non-hazardous environments, ensuring reliable LED lighting solutions.
MEAN WELL HBG16048A LED Driver Specifications:
- Rated Power: 97.2W
- Output Voltage: 24V, 36V, 48V, 60V (adjustable for models)
- Rated Current: 4A, 2A, 1.6A, 1.0A
- Constant Current Region: 14.4 ~ 24V, 21.6 ~ 36V, 28.8 ~ 48V, 36 ~ 60V
- Efficiency: up to 91.5%
- Input Voltage: 90~305VAC
- Frequency Range: 47 ~ 63Hz
- Total Harmonic Distortion: < 20%
- Power Factor: >0.96/115VAC, >0.96/230VAC, >0.94/277VAC
- Protection: Over Voltage, Over Temperature, Short Circuit
- Ambient Temp: -40°C to +85°C
- Dimensions: 130mm * 66.5mm
- Ingress Protection: IP67/IP65
- Lifetime: >50,000 hours
- Certifications: UL, CE, ENEC, BIS, EAC, P65
- Dimming: 1-10VDC, 10V PWM, Resistance, DALI control
Buy the Buy MEAN WELL HBG-100-48 LED Driver Part Number HBG16048A Online
Order the MEAN WELL HBG-100 series LED driver online today. Engineered for durability and efficiency, it features adjustable voltage, multiple dimming options, and IP67/IP65 ratings. Perfect for indoor and outdoor lighting applications, including hazardous locations. Its rugged metal housing and high lifetime expectancy ensure reliable performance in demanding environments. Easy to install, with extensive protection features, this driver guarantees stable operation and long-term service—ideal for commercial, industrial, and outdoor lighting projects. Buy now to achieve high-quality, energy-efficient LED lighting solutions.
Get MEAN WELL HBG-100-48 today—built for reliable, long-lasting LED lighting in harsh environments.
Frequently Asked Questions
Where can I buy MEAN WELL HBG16048A?
You can click on the BUY or RFQ button to purchase HBG16048A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG16048A?
You can download the HBG16048A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG16048A?
MEAN WELL
