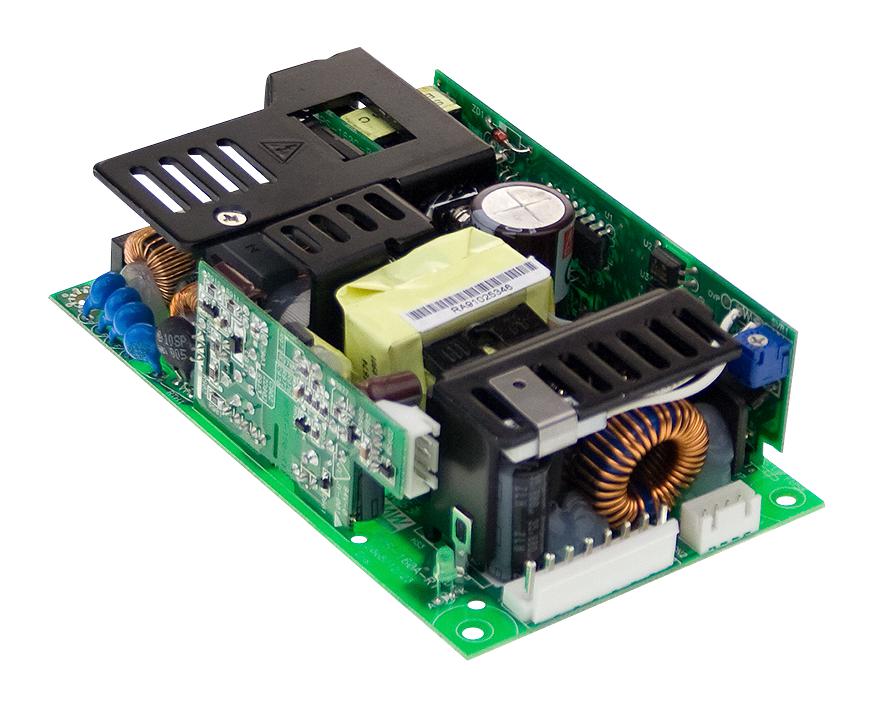

MEAN WELL RPTG160A Medical Power Supply
The RPTG160A series is a highly reliable, medical-grade power supply providing 160W of power with triple isolated outputs. It features universal AC input, built-in active PFC, and comprehensive protections including short circuit, overload, over voltage, and over temperature. Compact at 5x3 inches, it supports free air convection for high efficiency, is approved for medical safety (2 x MOPP), and offers optional low no-load power consumption. Suitable for BF applications, it ensures durability and consistent performance in medical device systems. Three-year warranty adds confidence for professional use.
MEAN WELL RPTG160A Medical Power Supply Specifications:
- Input Voltage: 90-264VAC, 47-63Hz, DC 127-370V
- Output Power: 160W (convection), 145W (20.5 CFM forced air)
- Outputs: 3 channels with adjustable voltage and current
- Protections: Short circuit, overload, over voltage, over temperature
- Efficiency: Up to 84%
- Dimensions: 127mm x 76.2mm x 34.6mm
- Isolation Level: Primary-Secondary: 2x MOPP, Primary-Earth: x MOPP, Secondary-Earth: x MOPP
- Safety Standards: ANSI/AAMI ES60601-1, TUV EN60601-1 approved
- Operating Temperature: -20°C to +70°C, Humidity: 20-90% RH non-condensing
- MTBF: 491,400 hours
- EMC Compliance: EN55022 Class B, EN61000-4-2/3/4/5/6/8/11
- Touch Current: <100μA; Leakage Current: <200mA at 254VAC
Buy the Mean Well Series RPT-160 Medical Power Supply: RPTG160A
Purchase the reliable and efficient medical-grade power supply RPTG160A online today. This 160W triple output unit features universal AC input, active PFC, and multiple safety protections. Its compact size and high efficiency make it ideal for medical devices requiring stable power. Meet safety standards with confidence and enjoy a three-year warranty. Whether for new equipment or upgrade projects, buying online ensures quick delivery and seamless integration into your medical systems. Invest in proven durability today.
Order your Mean Well Series RPTG160A power supply today and ensure the reliable, safe performance required for critical medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL RPTG160A?
You can click on the BUY or RFQ button to purchase RPTG160A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPTG160A?
You can download the RPTG160A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPTG160A?
MEAN WELL
