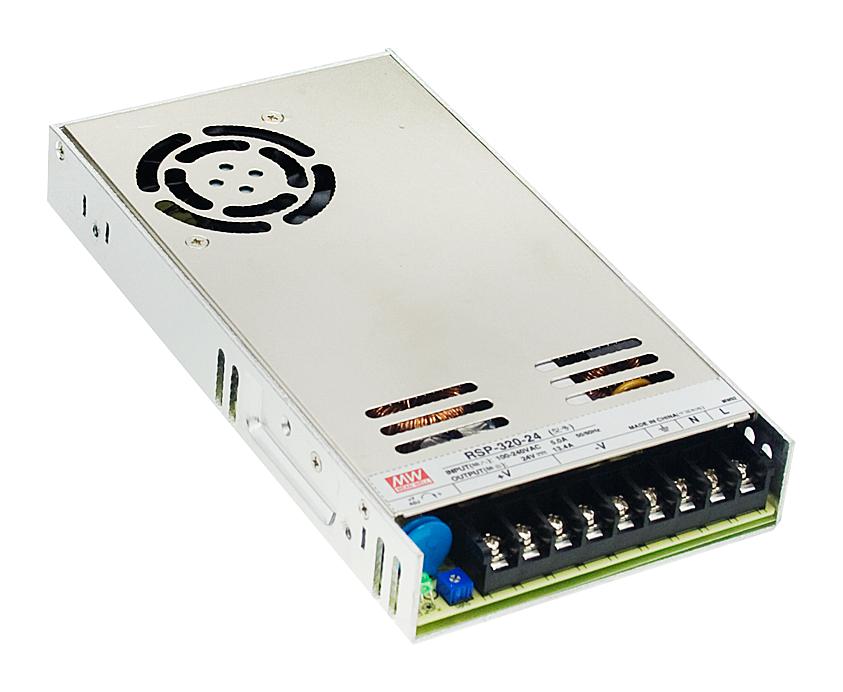

MEAN WELL RSP320135 Industrial Power Supply
The RSP-320 series is a 320W single output enclosed AC/DC power supply suitable for industrial automation, measurement, and laser applications. It features universal 88~264VAC input, built-in active PFC, high efficiency up to 90%, and operates up to 70°C with built-in fan cooling. Its protections include short circuit, overload, over voltage, and over temperature, with optional conformal coating. The series offers multiple voltage options, widely used in control systems, test equipment, and RF applications, ensuring reliable performance in demanding environments.
MEAN WELL RSP320135 Industrial Power Supply Specifications:
- Input Voltage: 88~264VAC
- Output Power: 320W
- Dimensions: 215*115*30mm (L*W*H)
- Efficiency: up to 90%
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Built-in fan with speed control
- Operating Temperature: -30°C to +70°C
- Humidity: 20~90% RH non-condensing
- Derating: 3.5°C/1000m with fanless models, 5°C/1000m with fan models above 2000m altitude
- Safety Standards: UL62368-1, EN62368-1, CE, CB
- Ripple & Noise: Max 150mVp-p depending on model
- MTBF: 206,500 hours
- Vibration Resistance: 10~500Hz, 2G
Buy the Mean Well Series RSP-320 320W Power Supply: RSP320135
Purchase the Mean Well RSP320135 power supply online today and ensure your industrial automation projects run smoothly. With 320W output, active PFC, high efficiency, and comprehensive protection features, this enclosure type device is perfect for control systems, measurement instruments, and laser machines. Its robust construction, wide input voltage range, and built-in fan for cooling provide dependable operation even in demanding environments. Order now to benefit from fast delivery and genuine quality guaranteed to meet industrial standards.
Buy Mean Well RSP320135 now and experience unmatched reliability and performance in industrial power applications.
Frequently Asked Questions
Where can I buy MEAN WELL RSP320135?
You can click on the BUY or RFQ button to purchase RSP320135 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP320135?
You can download the RSP320135 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP320135?
MEAN WELL
