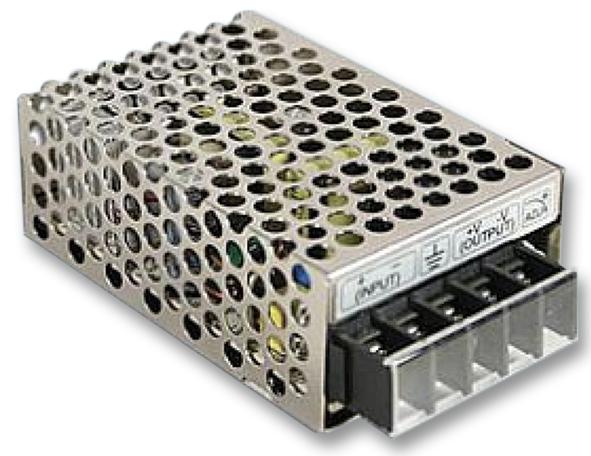

MEAN WELL SD15C24 DC-DC Converter
The SD-15C-24 is a 15W single output DC-DC converter providing a stable 24V output. Featuring a wide input range, low ripple noise, built-in EMI filtering, and protections against short circuits and overloads, it ensures reliable operation in industrial environments. Suitable for automation, control systems, and electronic equipment, this converter offers high efficiency and durability, with a compact size of 78x51x28mm. Its robust design supports working temperatures from -10°C to +60°C and complies with safety and EMC standards, making it an ideal power solution for various applications.
MEAN WELL SD15C24 DC-DC Converter Specifications:
- Dimensions: 78*51*28mm
- Input Voltage Range: 92~18VDC, 18~36VDC, 36~72VDC
- Output Voltage: 24V
- Rated Power: 15W
- Rated Current: 0.625A
- Ripple & Noise (max.): 150mVp-p
- Efficiency (Typ.): 78%
- Voltage Tolerance: ±2.0%, +1.0%
- Line Regulation: 10.2%
- Load Regulation: 10.2%
- Working Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +85°C
- Humidity: 20~90% RH non-condensing
- Isolation Voltage: 1KVAC between input and output, 0.5KVAC from output to ground
- Vibration Resistance: 2G at 40-500Hz
- Compliance: EN55022 Class B, EN61000-4-2/3/4/6/8
Buy the Reliable DC-DC Converter 15W 24V - SD15C24 for Industrial Applications
Purchase the SD15C24 DC-DC converter online today to ensure a reliable and efficient power supply for your industrial automation, control systems, or electronic equipment. Designed with a compact form factor, it offers a wide input voltage range, low ripple noise, and built-in protections like short circuit and overload safety. Its high efficiency supports energy savings, while compliance with EMC standards guarantees EMI safety. Enjoy quick delivery and seamless online ordering of this durable and high-performance power module.
Get SD15C24 today—built for precision, high efficiency, and long-lasting durability in industrial power supplies.
Frequently Asked Questions
Where can I buy MEAN WELL SD15C24?
You can click on the BUY or RFQ button to purchase SD15C24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD15C24?
You can download the SD15C24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD15C24?
MEAN WELL
