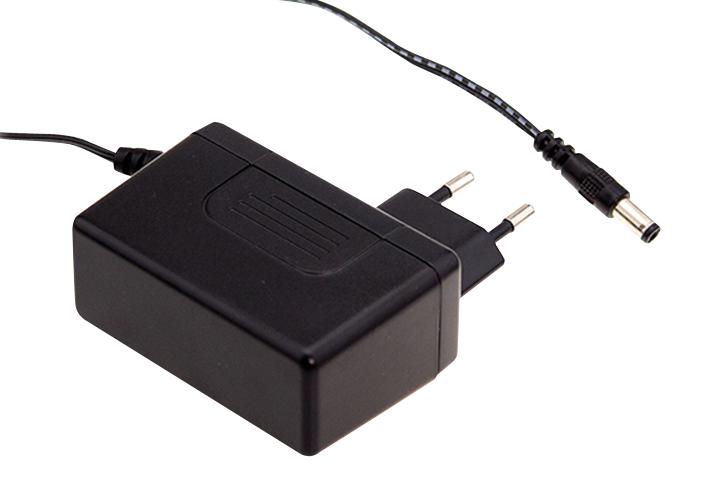

MEAN WELL GSM60E12P1J Medical Power Adapter
GSM60E12P1J is a 60W ultra-slim, wall-mounted medical power adapter designed for reliable performance in medical environments. It features an adjustable output voltage of 12VDC, compact and lightweight form factor, and compliance with international safety standards such as EN60601-1/EN60601-1-11 with 2*MOPP isolation. The power supply offers over-voltage, over-current, and short-circuit protections, with high energy efficiency up to 90% and very low no-load power consumption below 0.15W. Its fully enclosed plastic case ensures user safety, making it suitable for various medical electronic devices including blood glucose meters, blood pressure monitors, nebulizers, inhalers, and sleep apnea devices.
MEAN WELL GSM60E12P1J Medical Power Adapter Specifications:
- Power Rating: 60W
- Output Voltage: 12VDC
- Rated Current: 4A
- Current Range: 0~4A
- Ripple & Noise: 100mVp-p max.
- Voltage Tolerance: ±5%
- Line Regulation: ±1.0%
- Load Regulation: ±3.0%
- Efficiency: Up to 90%
- No-load Power Consumption: <0.15W
- Input Voltage Range: 80~264VAC
- Frequency Range: 47~63Hz
- Protection: Over-voltage, Over-current, Short circuit
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -30°C to +85°C
- Dimensions: 75.5mm x 32mm x 47.5mm
- Safety Standards: EN60601-1/EN60601-1-11, TUV, UL
- Isolation Level: 2 x MOPP
Buy the Buy Mean Well Medical Power Adapter Part Number GSM60E12P1J Online
Order the Mean Well GSM60E12P1J medical power adapter online today to ensure reliable performance for your medical devices. This 60W power supply features a 12V output, high efficiency up to 90%, and ultra-low power consumption below 0.15W. Its compact, fully enclosed design meets international medical standards including EN60601-1, providing excellent safety, protection against over-voltage, over-current, short-circuit faults, and wide temperature operation from -30°C to +70°C. Perfect for blood glucose monitors, nebulizers, blood pressure devices, inhalers, and sleep apnea systems, ensuring consistent, safe power supply for critical healthcare equipment.
Get Mean Well GSM60E12P1J today—built for precision and long-lasting durability in medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL GSM60E12P1J?
You can click on the BUY or RFQ button to purchase GSM60E12P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM60E12P1J?
You can download the GSM60E12P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM60E12P1J?
MEAN WELL
