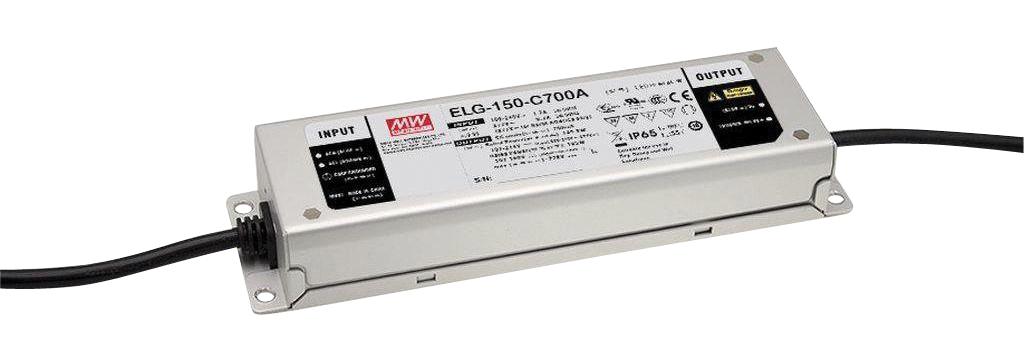

MEAN WELL ELG150C1400B LED Driver
The ELG-150-C series is a 150W LED driver designed for indoor and outdoor applications, offering constant current output with high efficiency up to 92%. It features IP67/IP65 ingress protection, integrated active PFC, adjustable dimming options including 3 in 1 dimming, DALI control, smart timer functions, and auxiliary DC output. Operating from 100-360VAC, it performs reliably in temperatures from -40°C to +85°C, providing a long lifetime over 50,000 hours and a 5-year warranty. Suitable for street, harbor, flood, greenhouse, and hazardous location lighting, this driver combines durability and flexible functionality for advanced LED systems.
MEAN WELL ELG150C1400B LED Driver Specifications:
- Power: 150W
- Rated Current: 500mA, 700mA, 1050mA, 1400mA, 1750mA, 2100mA
- Input Voltage: 100-360VAC
- Efficiency: up to 92%
- Power Factor: 0.95/0.92 at 115VAC/230VAC
- Maximum Output Voltage: 315V
- Open Circuit Voltage: 315V
- Operating Temperature: -40°C to +85°C
- Dimming Options: 3 in 1 dimming, DALI, smart timer
- Ingress Protection: IP67/IP65
- Lifetime: >50,000 hours
- Dimensions: 219mm x 63mm x 35.5mm
- Protection: Over voltage, over temperature, short circuit, hiccup mode
- Certifications: UL8750, CSA, EN/AS/NZS 61347-1, 61347-2-13
- Mechanical: Metal housing with functional ground
Buy the Mean Well ELG150C1400B – Reliable LED Driver for Industrial Applications
Discover the high-performance ELG-150-C series LED driver, engineered for durability and efficiency. It offers adjustable output, multiple dimming options, and IP67/IP65 protection, making it ideal for outdoor, street, flood, or hazardous environment lighting. With a long lifespan exceeding 50,000 hours and a compact metal housing, this driver ensures reliable operation across a wide temperature range from -40°C to +85°C. Purchase online now for easy installation and the best in LED power management, supporting advanced lighting solutions in demanding industrial and commercial applications.
Get Mean Well ELG150C1400B today—built for precision and long-lasting durability in demanding LED lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL ELG150C1400B?
You can click on the BUY or RFQ button to purchase ELG150C1400B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ELG150C1400B?
You can download the ELG150C1400B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ELG150C1400B?
MEAN WELL
