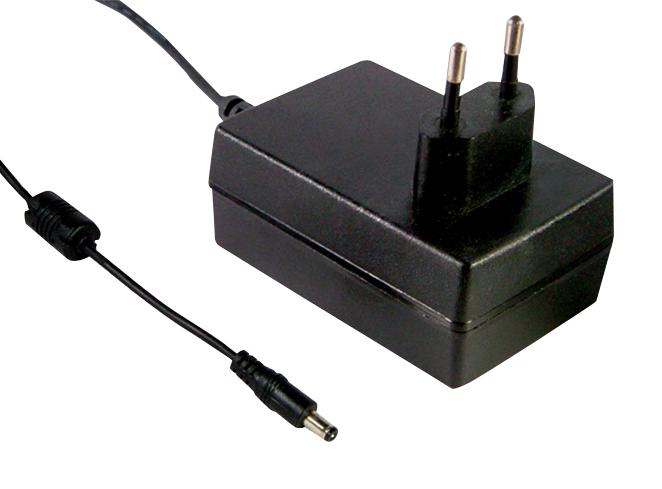

MEAN WELL GSM36E24P1J Medical Power Adapter
The GSM36E24P1J is a highly reliable, 36W medical-grade AC-DC power adapter designed for portable and miniature medical devices. Featuring an input range of 80VAC to 264VAC, it provides a 24V DC output with a rated current of 1.58A. This fully enclosed, plastic-case power supply meets medical safety standards with double insulation and low leakage current below 50µA. It boasts high efficiency up to 88%, low no-load power consumption under 0.1W, and protections against short circuit, overload, and over voltage, ensuring safe, consistent operation in medical environments.
MEAN WELL GSM36E24P1J Medical Power Adapter Specifications:
- Input Voltage Range: 80VAC to 264VAC
- Output Voltage: 24V DC
- Rated Current: 1.58A
- Maximum Power: 36W
- Ripple & Noise: 240mVp-p
- Voltage Tolerance: ±2.0%
- Line Regulation: ±1.0%
- Load Regulation: ±2.0%
- Efficiency: Up to 88%
- No-Load Power Consumption: <0.1W
- Working Temperature: -25°C to +60°C (derating above 50°C)
- Protection: Short Circuit / Overload / Overvoltage
- Safety Certification: TUV EN60601-1-11, UL
- Insulation Double: 2 x MOPP
- Leakage Current: <50µA
- Dimensions: 79mm x 54mm x 33mm
- Plastic Case: UL94V-0 flame retardant
- Protections: Automatic recovery in fault conditions
Buy the Buy IP68 Medical Power Supply Part Number GSM36E24P1J Online
Purchase the GSM36E24P1J medical power adapter online today to guarantee high reliability and safety for your portable medical devices. This 36W, 24VDC adapter features a compact design with low leakage current, high energy efficiency up to 88%, and comprehensive protections such as over voltage, overload, and short circuit. Certified for medical safety standards including EN60601-1, it meets strict clinical requirements. With low no-load power consumption under 0.1W and a durable UL94V-0 plastic case, this power supply ensures consistent, safe operation in demanding healthcare environments. Order now to enhance your device’s reliability and compliance.
Order your IP68 Medical Power Supply GSM36E24P1J today and ensure reliable, safe power for your portable medical devices in critical environments.
Frequently Asked Questions
Where can I buy MEAN WELL GSM36E24P1J?
You can click on the BUY or RFQ button to purchase GSM36E24P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM36E24P1J?
You can download the GSM36E24P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM36E24P1J?
MEAN WELL
