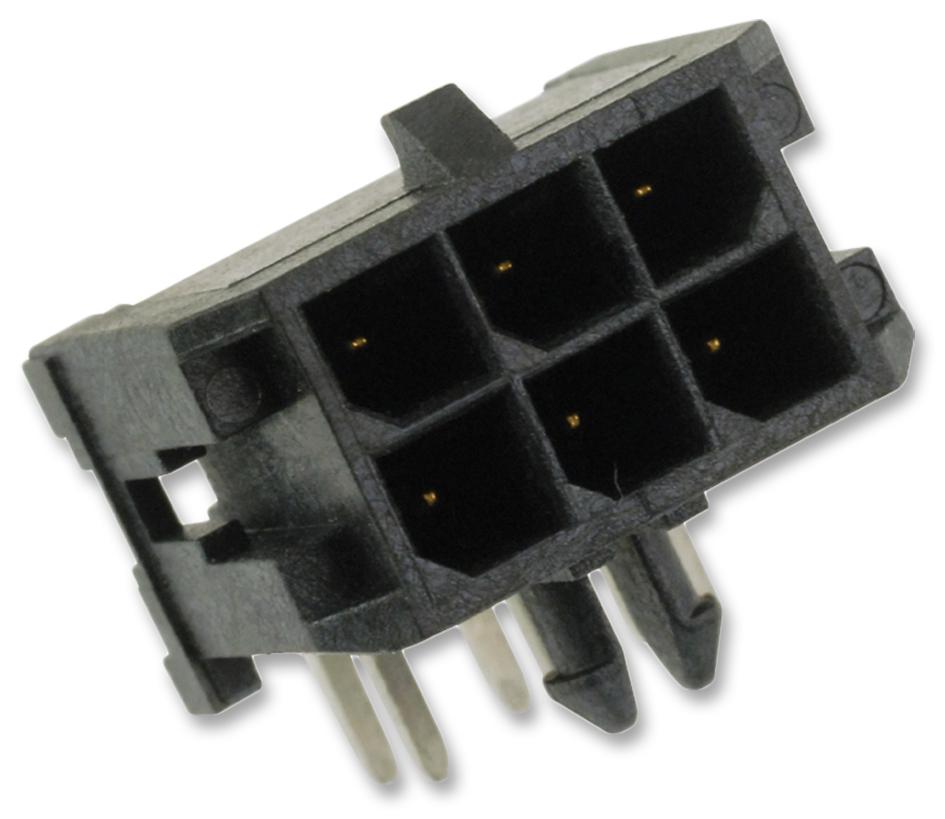

MOLEX 0430450602 Micro-Fit 3.0 Connector
The Micro-Fit 3.0™ Right Angle Header offers a 3.00mm pitch with dual row configurations, 6 circuits, and snap-in PCB lock for secure connections. Manufactured with high-temperature thermoplastic, it supports operating temperatures from -40°C to +105°C. Compliant with RoHS, UL, CSA standards, and halogen-free, this connector features gold-plated contacts with tin for durability. Suitable for wire-to-board applications, it ensures reliable performance with a maximum current of 5A per contact and voltage up to 600V. Its robust design includes a shrouded, polarized, surface-mount compatible structure, perfect for high-reliability electronic systems.
MOLEX 0430450602 Micro-Fit 3.0 Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Maximum Mating Cycles: 10
- Material: High Temperature Thermoplastic
- Contact Material: Brass with Gold plating
- Plating Min: 0.762um
- Current per Contact: 5.0A
- Voltage Max: 600V
- Operating Temperature: -40°C to +105°C
- PCB Thickness Recommended: 1.60mm
- Assembly Style: Through Hole
- Surface Mount Compatible: Yes
- Color - Resin: Black
- Packaging: Tray
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Glow Wire Capable: Yes
- Mated Height: 10.29mm
- PCB Locator & Retention: Yes
- Orientation: Right Angle
- PCB Polarized: Yes
- Shrouded: Fully
- Stackable: No
- Net Weight: 1.106 g
Buy the Molex 0430450602 – Reliable Micro-Fit 3.0 Connector for Industrial Applications
Secure your electronic projects with the Molex Micro-Fit 3.0 connector. Designed with a 3.00mm pitch, six circuits, and snap-in lock, it ensures dependable power connections. Crafted from high-temperature thermoplastic, it operates between -40°C and +105°C, making it ideal for demanding environments. The gold and tin-plated contacts guarantee longevity and corrosion resistance. Certified RoHS, UL, and CSA compliant, this connector is perfect for power and wire-to-board applications requiring durable, reliable, and safe electrical connections. Order online today for fast delivery and trusted quality.
Buy Molex 0430450602 now and experience unmatched reliability and high-temperature performance suitable for power and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 0430450602?
You can click on the BUY or RFQ button to purchase 0430450602 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 0430450602?
You can download the 0430450602 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 0430450602?
MOLEX
