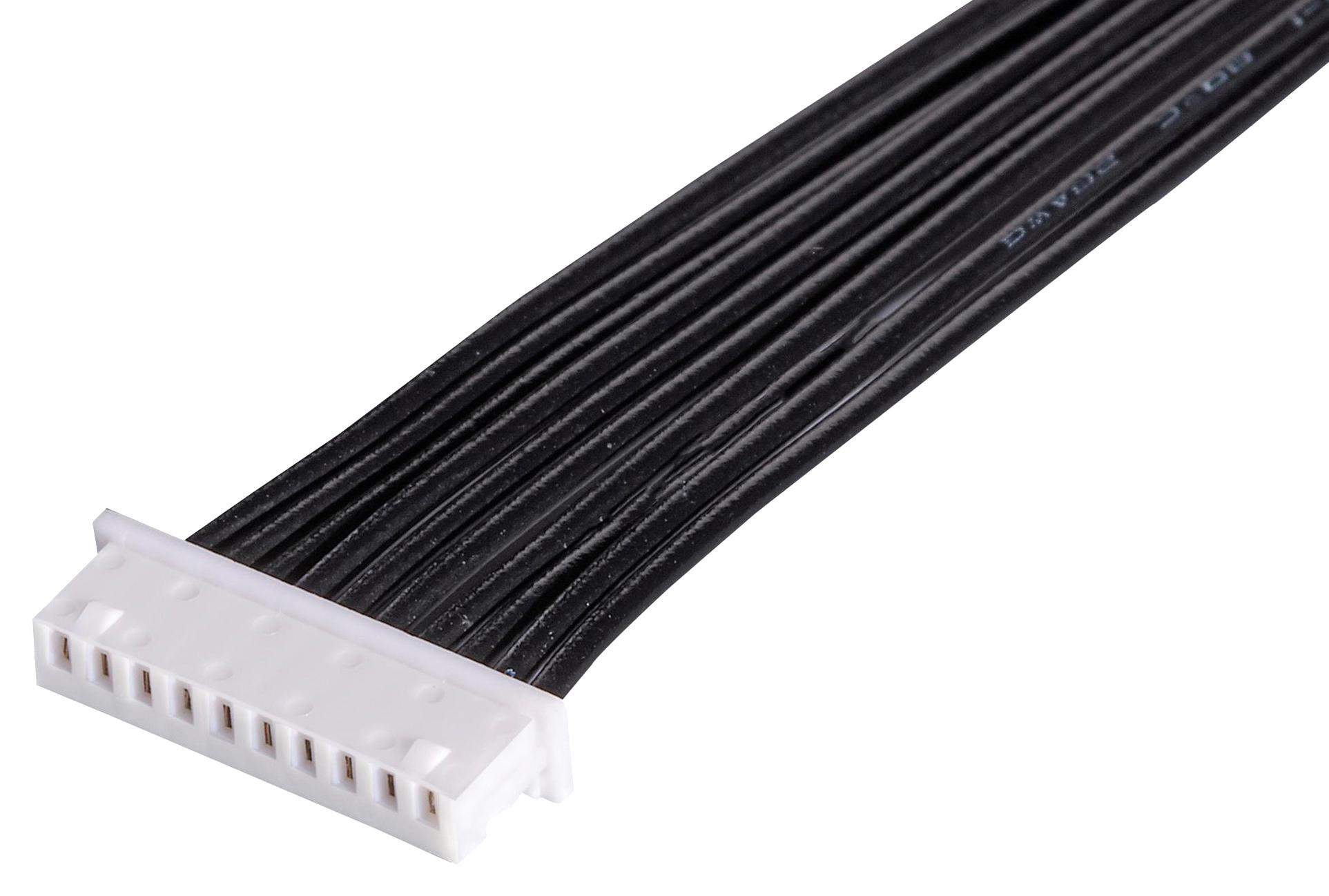

MOLEX 151341001 PicoBlade Cable Assembly
The MOLEX 15134-1001 is a PicoBlade cable assembly designed for signal transmission in various applications, including wire-to-board and wire-to-wire connections. This dual-ended assembly features PicoBlade connectors, a 100mm length, and 10 circuits, providing a compact and reliable solution. Constructed with phosphor bronze and polyester resin, it offers durability and efficient signal transfer. Its natural resin color and female-female gender make it suitable for a wide range of electronic devices and industrial applications.
MOLEX 151341001 PicoBlade Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 15134
- application: Signal, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- overmolded: No
- cable_length: 100.00mm
- circuits_loaded: 10
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 4.550/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- upc: 191128411806
