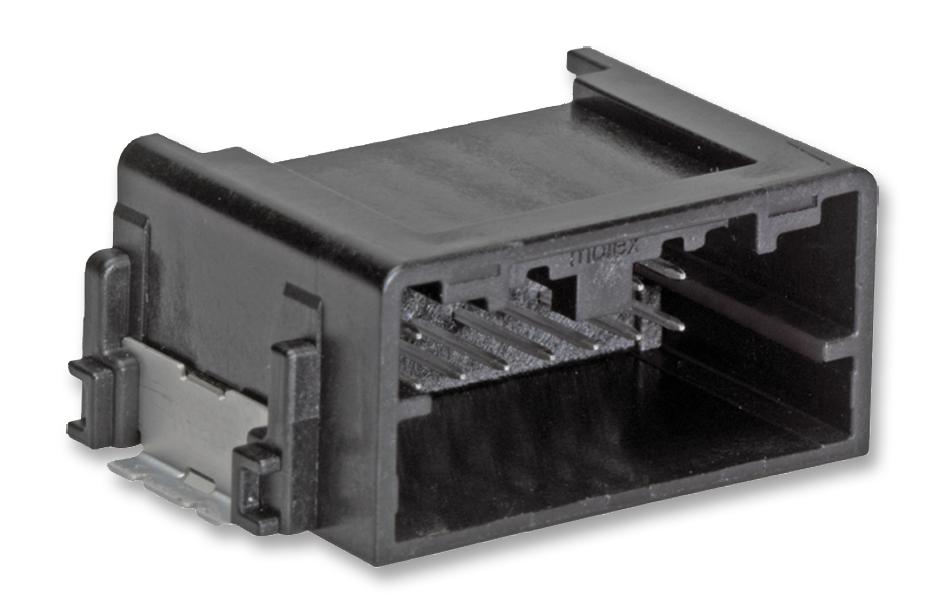

MOLEX 348976120 Power Header
The Mini50 Unsealed Header with a right-angle, surface-mount design offers reliable electrical connections in compact PCB layouts. Featuring 12 circuits with gold plating for durability and corrosion resistance, it is ideal for power and signal applications. The dual-row configuration ensures secure mating and optimal contact performance. Designed to operate from -40°C to +105°C, the header provides a maximum current of 5.0A per contact and a maximum voltage of 500V DC. Its black resin body enhances durability and ease of identification, suitable for various industrial electronic assemblies.
MOLEX 348976120 Power Header Specifications:
- Product Family: Mini50
- Application: Power, Signal, Wire-to-Board
- Number of Rows: 2
- Circuits (Loaded): 12
- Circuits (Maximum): 12
- Color - Resin: Black
- Orientation: Right Angle
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 2.00mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Surface Mount
- Current - Maximum per Contact: 5.0A
- Voltage - Maximum: 500V DC
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: SPS
Buy the Molex 0348976120 – Reliable Power and Signal Header for Industrial Applications
Experience seamless PCB connections with the Molex Power Header designed for industrial applications. This 12-circuit, right-angle SMT component features gold-plated contacts for long-lasting corrosion resistance. Its compact dual-row layout ensures reliable power and signal transfer in space-constrained environments. Rated for up to 5.0A per contact and 500V DC, it operates from -40°C to +105°C, making it ideal for demanding industrial and electronic systems. Purchase online today to ensure high-quality, durable connections for your projects.
Get Molex 0348976120 today—built for precise power and signal connections in industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 348976120?
You can click on the BUY or RFQ button to purchase 348976120 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 348976120?
You can download the 348976120 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 348976120?
MOLEX
