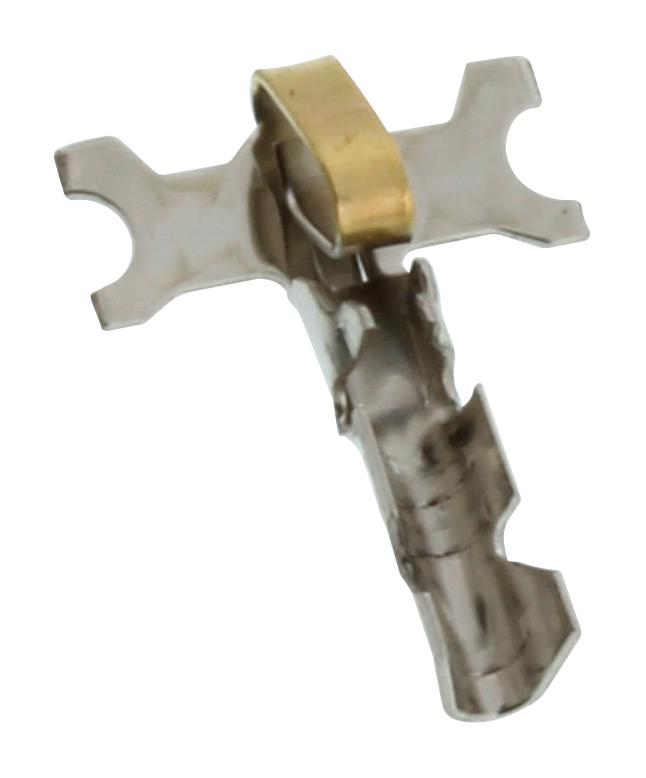

MOLEX 08650105 KK 254 Crimp Terminal
The MOLEX 08-65-0105 KK 254 Crimp Terminal is a crucial component in the KK Interconnect System. Designed for use with 22-30 AWG wire, this terminal offers a secure and reliable connection. The gold and nickel plating ensures excellent conductivity and corrosion resistance, making it suitable for a wide range of industrial applications. It is RoHS compliant and part of the widely used 8088 series, ensuring compatibility and ease of integration into existing systems. This terminal is ideal for applications requiring robust and dependable wire terminations.
MOLEX 08650105 KK 254 Crimp Terminal Specifications:
- Product Family Series: 8088
- Application: Crimp Quality Equipment
- Gender: Female
- Material - Metal: Phosphor Bronze
- Material - Plating - Mating: Gold
- Material - Plating - Termination: Nickel
- Plating min - Mating: 0.381µm
- Plating min - Termination: 0.762µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22, 24, 26, 28, 30
- Wire Size mm²: N/A
- Net Weight: 0.071/g
- Packaging Type: Reel
- Lead-freeProcess Capability: N/A
- Engineering Number: 8088-(555)
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free Status: Low-Halogen
- Use With: 2695 , 6471
- Extraction Tool: 11030022
- Terminator Die: 11402102
- Insertion Tool: 638120000
- Mini-Mac for Cat Ear and Anti-Fish Hook: 638887100
