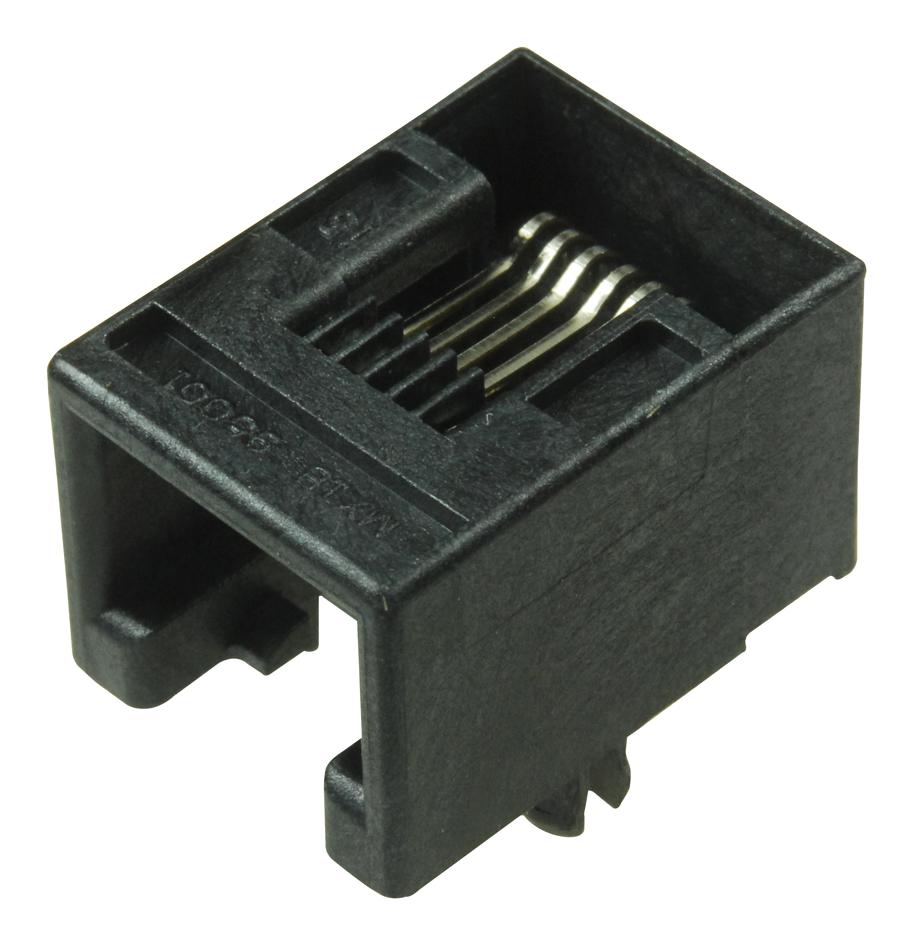

MOLEX 955016649 Modular Jack
This low-profile, surface-mount modular jack features a right-angle design with 6/4 positions, suitable for power over Ethernet (PoE) applications. Made from high-temperature thermoplastic, it has a durable construction rated for up to 2500 mating cycles, with gold-over-palladium nickel and tin plating for reliable connectivity. The jack supports operating temperatures from -40°C to +85°C, handles 1.5A current per contact at 125V DC, and complies with EU RoHS and halogen-free standards. Its compact 11.50mm height and 1.57mm pitch make it ideal for densely packed electronic assemblies.
MOLEX 955016649 Modular Jack Specifications:
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Palladium Nickel
- Material - Plating Termination: Tin
- Flammability: 94V-0
- Dimensions: Jack height 11.50mm, Pitch of 1.57mm, Port configuration 6/4
- Durability: 2500 mating cycles, rated for high-temperature environments up to 85°C
- Electrical: Max voltage 125V DC, Max current 1.5A per contact
- Environmental: RoHS compliant, Halogen-Free, Operating temperature -40°C to +85°C
Buy the Buy Molex Modular Jack Part Number 955016649 Online
Purchase the Molex modular jack 955016649 online today to enhance your electronic assemblies with a reliable, high-performance connector. Its low-profile, surface-mount design with right-angle orientation supports dense circuit layouts. Made with high-temperature thermoplastic and plated with gold over palladium nickel for excellent electrical contact, this jack withstands up to 2500 mating cycles and operates within a temperature range of -40°C to +85°C. RoHS compliant and halogen-free, it ensures regulatory standards are met while offering long-lasting durability and connection stability.
Order your Molex Series95501 955016649 today and ensure reliable, compact connectivity for your high-demand Ethernet and networking projects.
Frequently Asked Questions
Where can I buy MOLEX 955016649?
You can click on the BUY or RFQ button to purchase 955016649 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 955016649?
You can download the 955016649 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 955016649?
MOLEX
