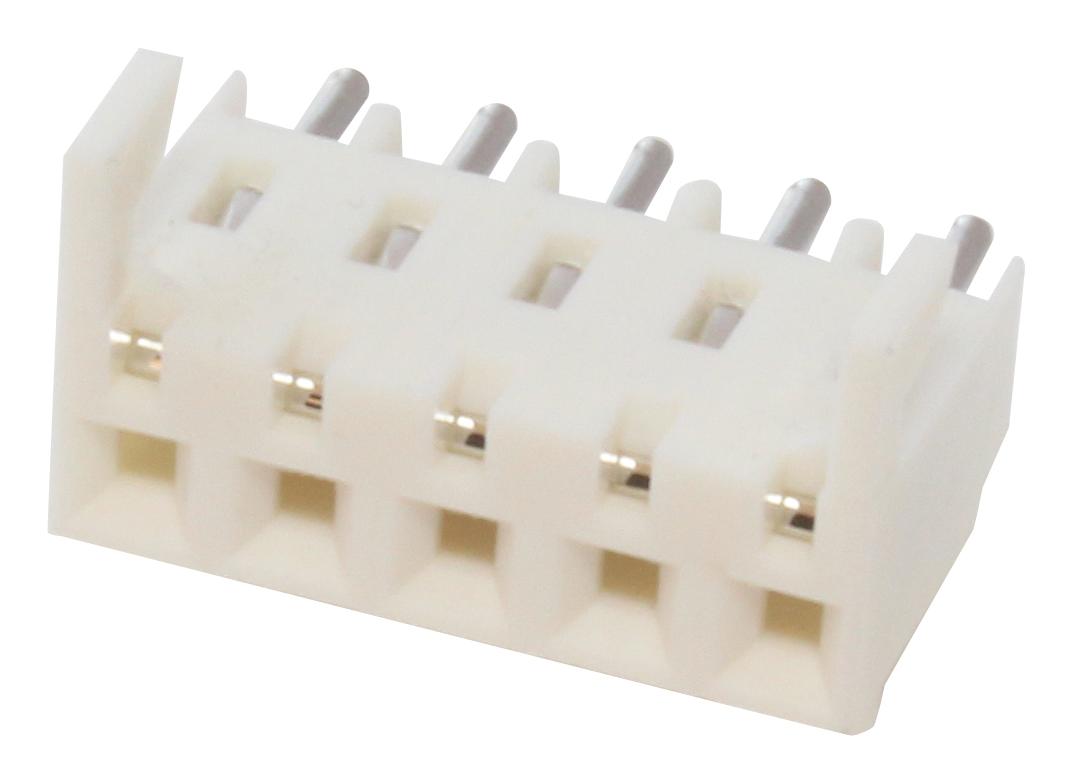

MOLEX 09484058 KK 396 PC Board Connector
The MOLEX 09-48-4058 is a versatile PC Board Receptacle within the KK Interconnect System. Designed for board-to-board and power applications, this connector offers a robust solution for connecting PCBs. It features a top entry design, ensuring ease of use and integration. The connector's polyester resin material and tin plating provide excellent insulation and corrosion resistance, while the phosphor bronze material ensures durability. With a maximum current rating of 5.0A and a maximum voltage of 250V, this connector is suitable for a wide range of industrial applications. It is RoHS compliant and halogen-free, meeting environmental standards.
MOLEX 09484058 KK 396 PC Board Connector Specifications:
- Circuits (Loaded): 5 Circuits
- Circuits (maximum): 5 Circuits
- Color - Resin: Natural
- Flammability: 94V-0
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 1.688/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.05mm
- PCB Locator: No
- PCB Retention: None
- PCB Thickness - Recommended: 0.80mm
- Packaging Type: Tray
- Pitch - Mating Interface: 3.96mm
- Plating min - Mating: 5.080µm
- Plating min - Termination: 5.080µm
- Polarized to PCB: No
- Temperature Range - Operating: See Product Specification
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 5.0A
- Voltage - Maximum: 250V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability WAVE: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 235
