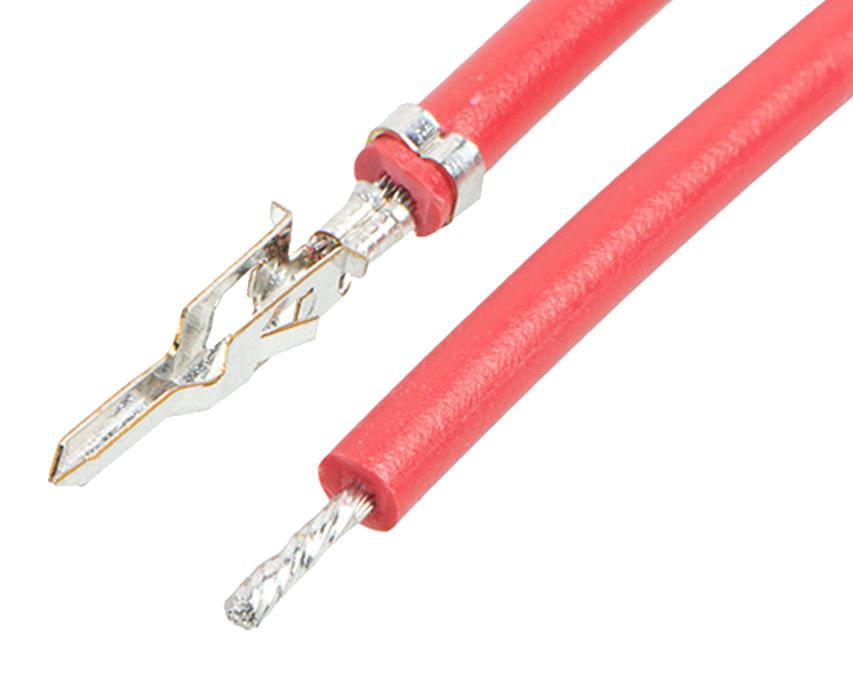

MOLEX 2153432124 Mini-Fit Jr. Pigtail
The MOLEX 215343-2124 is a pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly features a Mini-Fit Jr. male connector on one end and a pigtail on the other, providing a convenient and reliable connection solution. The tin plating ensures excellent conductivity and corrosion resistance, while the 300mm length offers flexibility in installation. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient power transmission.
MOLEX 2153432124 Mini-Fit Jr. Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 6.914/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560622
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2153431121-000
- use_with_housing: Mini-Fit Jr. Plug Housing 5559, Mini-Fit BMI Plug Housing 42475
