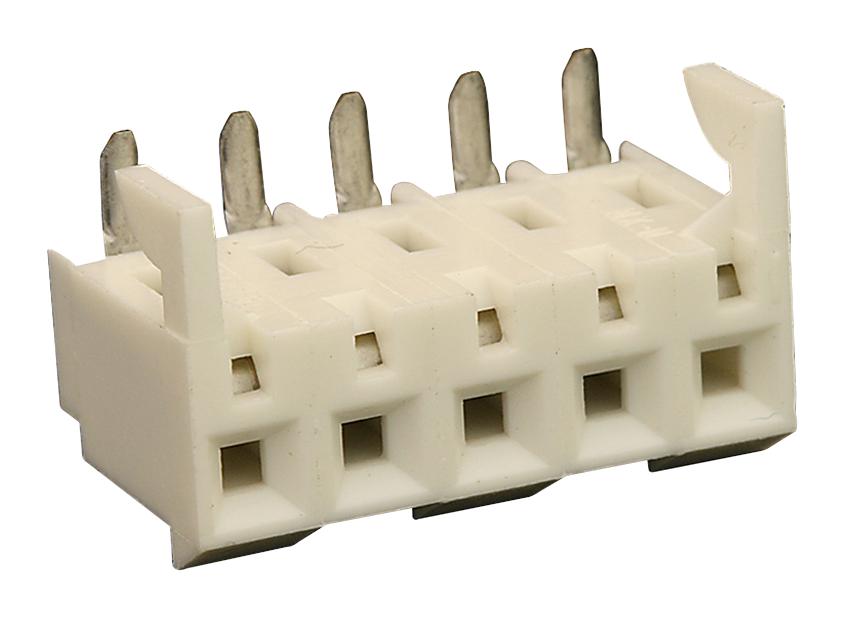

MOLEX 09484068 KK 396 PC Board Connector
The MOLEX 09-48-4068 is a versatile PC board connector from the KK Interconnect System. Designed for top entry applications, this connector offers 6 circuits and utilizes a polyester resin body with tin plating on both mating and termination interfaces. It's ideal for board-to-board connections in various industrial applications, offering reliable performance and ease of use. The connector is RoHS compliant and features a polarized design for secure PCB mounting.
MOLEX 09484068 KK 396 PC Board Connector Specifications:
- overview: KK Interconnect System
- description: KK 396 PC Board Connector, Top Entry, Polyester Connector, 5.00µm Tin (Sn), 6 Circuits
- product_family: PCB Receptacles
- series: 41815
- application: Board-to-Board, Power
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Natural
- flammability: 94V-0
- glow_wire_capable: No
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight_g: 2.028
- number_of_rows: 1
- orientation: Vertical
- pc_tail_length_mm: 3.05
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 0.80
- packaging_type: Tray
- pitch_mating_interface_mm: 3.96
- plating_min_mating_um: 5.080
- plating_min_termination_um: 5.080
- polarized_to_pcb: No
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_max_per_contact_a: 5.0
- voltage_max_v: 250
- duration_at_max_process_temp_seconds: 005
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temp: 001
- process_temperature_max_c: 235
- engineering_number: A-41815-0062
- drawing_numbers: PK-41815-001-000, PS-08-50-001, SDA-41815-000, SDA-41815-002
- mates_with: KK 396 Header 41771, 41772, 41791, 41792, 42491, 42492, 42891, 41661, 41662, 41671, 41672, 41681
