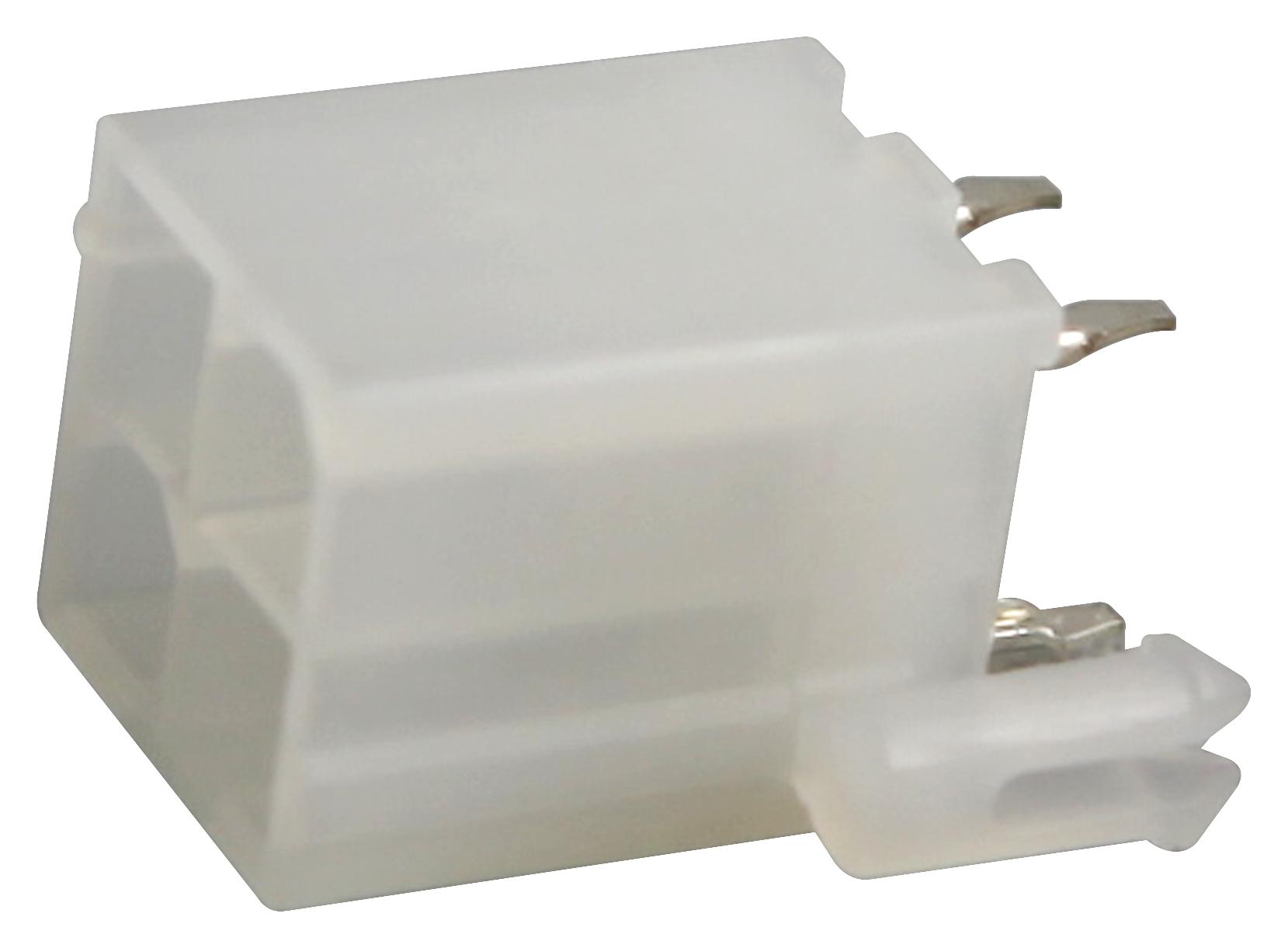

MOLEX 39306127 Power Connector
The Mini-Fit Jr. Vertical Header with a 4.20mm pitch is a power connector designed for wire-to-board applications. It features dual rows and 12 circuits with a snap-in plastic peg PCB lock, made of tin and natural resin. Suitable for environments with operating temperatures from -40°C to +105°C, it supports up to 9A per contact and 600V maximum voltage. The header's critical dimensions include a 4.20mm pitch, PCB retention, and a recommended PCB thickness of 1.60mm. It is RoHS and UL certified, halogen-free, and compatible with standard Mini-Fit female terminals, ensuring reliable electrical and mechanical connections.
MOLEX 39306127 Power Connector Specifications:
- Pitch: 4.20mm
- Number of Circuits: 12
- Maximum Current: 9.0A per contact
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Material - Resin: Plastic, natural color
- Plating Min - Mating & Termination: 2.540um tin
- PCB Thickness - Recommended: 1.60mm
- Contact Type: Through Hole
- Durability - Mating Cycles: Not specified
- RoHS Compliant: Yes
- UL Listed: Yes
- Halogen-Free: Yes
- Polarized to Mating Part: Yes
- PCB Retention: Yes
- Packaging: Tray
- Surface Mount Compatible: No
- Stackable: No
- Guide to Mating Part: 5557 Mini-Fit Jr. Receptacle Housing
- Temperature Range: -40°C to +105°C
Buy the Buy Molex Mini-Fit Jr. Power Connector Part Number 39306127 Online
Get the Molex Mini-Fit Jr. Power Connector with a 4.20mm pitch, dual row, 12 circuits, and tin-plated contacts. Designed for power wiring, it offers reliable electrical performance with a maximum of 9A per contact and 600V. Operates from -40°C to +105°C, RoHS and UL compliant, halogen-free, and features a snap-in plastic peg PCB lock for secure mounting. Suitable for various electrical applications requiring durable, high-current, and high-voltage connections, ensuring safety and efficiency in your assembly.
Order your Molex Mini-Fit Jr. Power Connector 39306127 today and ensure reliable power connections in your wiring projects.
Frequently Asked Questions
Where can I buy MOLEX 39306127?
You can click on the BUY or RFQ button to purchase 39306127 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39306127?
You can download the 39306127 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39306127?
MOLEX
