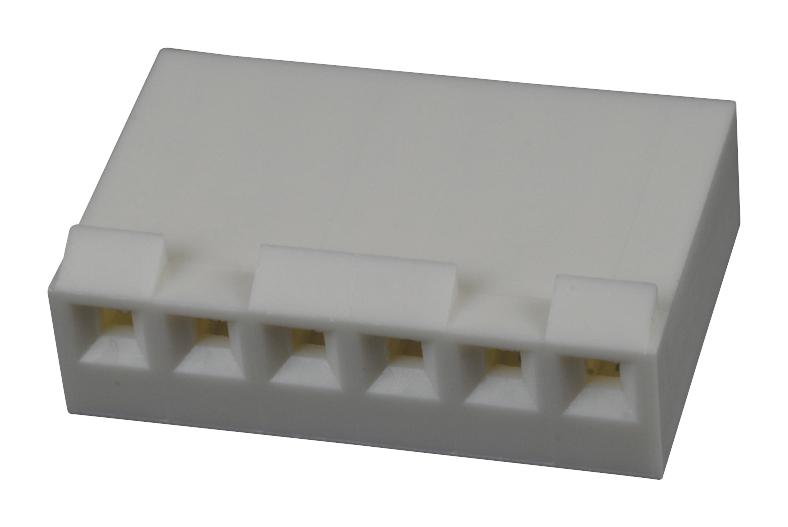

MOLEX 09508050 Connecting Terminal
These durable connectors feature a molded natural glass-filled polyester housing with UL94V-0 flammability rating, designed for reliable circuit connections in various electronic applications. They accommodate multiple circuit configurations, such as 2-14 circuits, with spacing options from 1.47 to 3.96 inches, and accept standard terminal numbers like 18-24 AWG and 22-26 AWG. The connectors include optional features like ramps, polarizing ribs, and grooves, ensuring secure mating with headers. They conform to Class B cosmetic requirements, offering robust performance and compatibility in high-density electronic assemblies. Their precise dimensions and optional voids facilitate flexible design integration.
MOLEX 09508050 Connecting Terminal Specifications:
- Material: N-Glass filled polyester, UL94V-0, molded natural
- Flammability: UL 94V-0
- Housing Material: Glass-filled polyester
- Dimensions: Varies with circuit number; length ranges from approximately 12.75 mm to 56.34 mm, with widths between 3.96 mm and 16.71 mm
- Contact Compatibility: Accepts standard terminal Nos. for 18-24 AWG and 22-26 AWG wires, insulation diameters up to 0.110 inches
- Configuration: 2 to 14 circuits, with optional voids and groove features
- Packaging: Includes bulk packaging options, with optional ramps and polarizing ribs
- Certification: Meets Class B cosmetic standards, UL Listed for safety and reliable performance
- Design Features: Grooves on both sides, optional polarization, with precise tolerances ±0.005 mm for dimensions
- Application: Widely used in electronic and electrical circuit assemblies requiring secure, high-density connectors
Buy the Molex 09508050 – Reliable Connectors for High-Density Electronic Assembly
Order Molex 09508050 connectors online today to secure your electronic projects with reliable, high-quality connection solutions. These connectors are designed to ensure tight, secure mating with headers and accept a variety of wire sizes for versatile applications. Their robust molded housing and precise dimensions guarantee durability and consistent performance across high-density circuit boards. Available in bulk packaging, they are perfect for manufacturing, assembly, and repair tasks in electronics, automation, and industrial applications. Purchase now to enhance your system’s reliability and streamline assembly processes efficiently.
Buy Molex 09508050 connectors now and experience unmatched reliability and performance in your electronic builds, ensuring secure circuit connections with ease.
Frequently Asked Questions
Where can I buy MOLEX 09508050?
You can click on the BUY or RFQ button to purchase 09508050 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09508050?
You can download the 09508050 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09508050?
MOLEX
