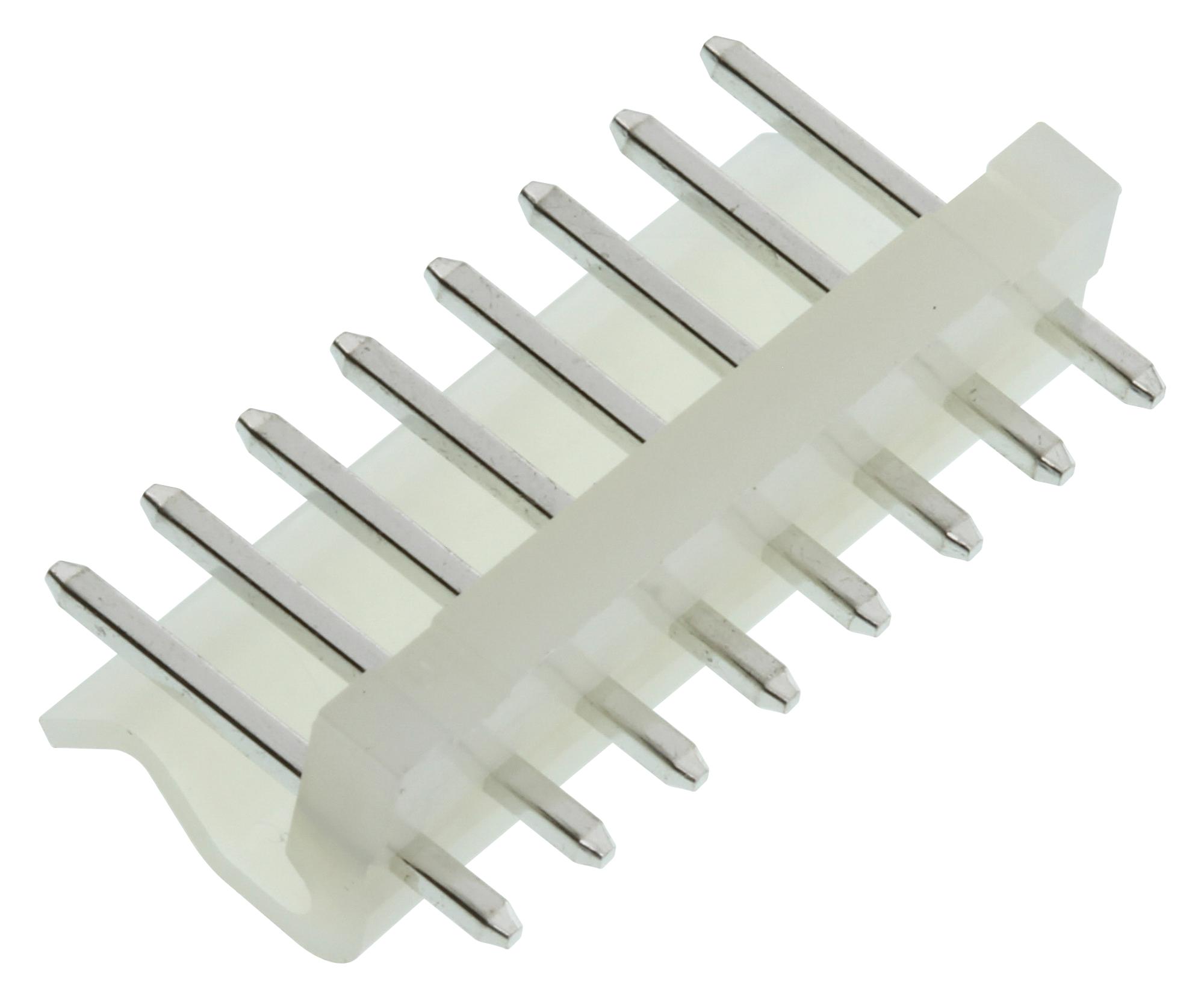

MOLEX 09652088 Wire-to-Board Connector
The Molex KK 396 Wire-to-Board Header series offers a reliable and durable vertical connector with friction lock, designed for power and signal applications. It supports up to 8 circuits with a current capacity of 7.0A per contact and a maximum voltage of 250V. Constructed with brass and tin plating, it features a PCB tail length of 3.60mm, operating temperature range from -40°C to +105°C, and a flammability rating of UL 94V-2. Its robust design ensures secure mating for wire-to-board connections in various electronic assemblies.
MOLEX 09652088 Wire-to-Board Connector Specifications:
- Number of Circuits: 8
- Current per Contact: 7.0A
- Maximum Voltage: 250V
- Operating Temperature Range: -40°C to +105°C
- Material: Brass
- Plating: Tin
- Resin Color: Natural
- First Mate/Last Break: 30
- Flammability: UL 94V-2
- Guide to Mating Part: Yes
- Orientation: Vertical
- PC Tail Length: 3.60mm
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 3.96mm
- Surface Mount Compatible: No
- Shrouded: No
- Stackable: Partial
- RoHS Compliant: Yes
Buy the Molex Series KK Wire-to-Board Connectors: 09652088
Discover the high-quality Molex Series KK Wire-to-Board Connector, part number 09652088, featuring an 8-circuit vertical design with friction lock for secure connections. This connector supports up to 7A per contact, operates within -40°C to +105°C, and is made of durable brass with tin plating. Its PCB tail length of 3.60mm and pitch of 3.96mm make it ideal for power and signal applications. Suitable for various electronic assemblies, this UL 94V-2 rated connector ensures dependable performance and compliance with RoHS standards. Buy online today for reliable electronic connections.
Order your Molex Series KK Wire-to-Board Connector with part number 09652088 today and ensure reliable, secure connections in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 09652088?
You can click on the BUY or RFQ button to purchase 09652088 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09652088?
You can download the 09652088 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09652088?
MOLEX
