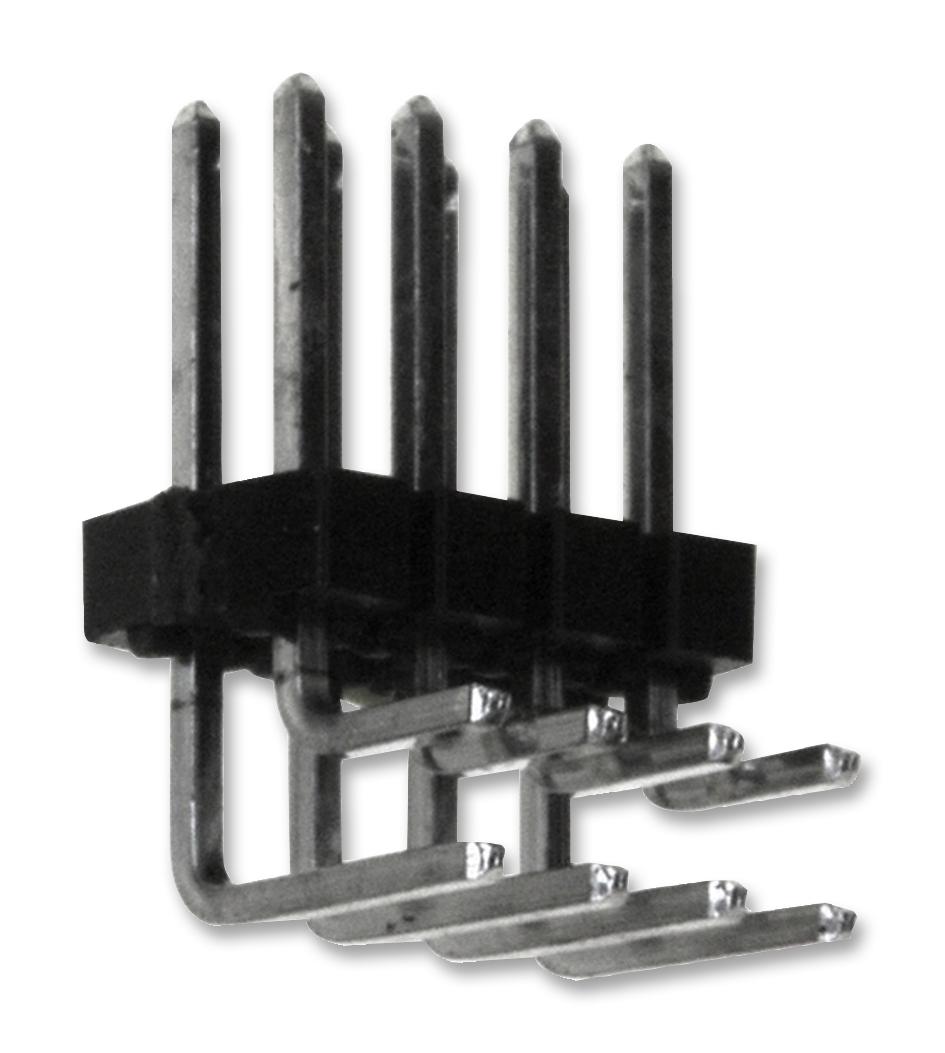

MOLEX 901220130 Pcb Header
The 2.54mm Pitch C-Grid III Header is a reliable, dual-row, right-angle connector designed for wire-to-board applications. This interconnect features 20 circuits with a tin over nickel plating, ensuring excellent electrical conductivity and durability. Suitable for various industrial uses, it supports a maximum voltage of 350V and a current of 3A per contact. Made from UL-certified materials, with a polyester resin body, brass contacts, and precise PCB retention features, it offers high performance in a compact, easy-to-mate design with a temperature range of -55°C to +125°C.
MOLEX 901220130 Pcb Header Specifications:
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 2
- Circuits (Loaded): 20
- Circuits (Maximum): 20
- Color - Resin: Not specified
- Flammability: UL 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Operating Temperature Range: -55°C to +125°C
- Voltage - Maximum: 350V
- Current - Maximum per Contact: 3A
- Net Weight: 1.660 grams
- Orientation: Right Angle
- PCB Tail Length: Not specified
- PCB Retention: Yes
- Packaging Type: Tray
- Lock to Mating Part: None
- Guide to Mating Part: None
- Glow-Wire Capable: No
- Shrouded: No
- Stackable: No
- Polarized to Mating Part: No
- Polarized to PCB: No
- Termination Interface Style: Through Hole
Buy the Molex 90122 U–2013 Reliable Pcb Headers for Industrial Applications
Enhance your electronic assembly with this reliable 2.54mm pitch C-Grid III Header. Designed for wire-to-board connections, it offers 20 circuits, dual-row, right-angle design, with tin over nickel plating for durability. Certified by UL, it withstands temperatures from -55°C to +125°C, supporting up to 350V and 3A per contact. Made from high-quality polyester resin and brass contacts, it ensures high electrical performance in a compact size, ideal for industrial, automation, and manufacturing projects. Available for easy purchase online.
Order your Molex Series90122 2.54mm Pitch C-Grid III Header today and give your projects the dependable quality they deserve with UL-certified performance.
Frequently Asked Questions
Where can I buy MOLEX 901220130?
You can click on the BUY or RFQ button to purchase 901220130 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901220130?
You can download the 901220130 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901220130?
MOLEX
