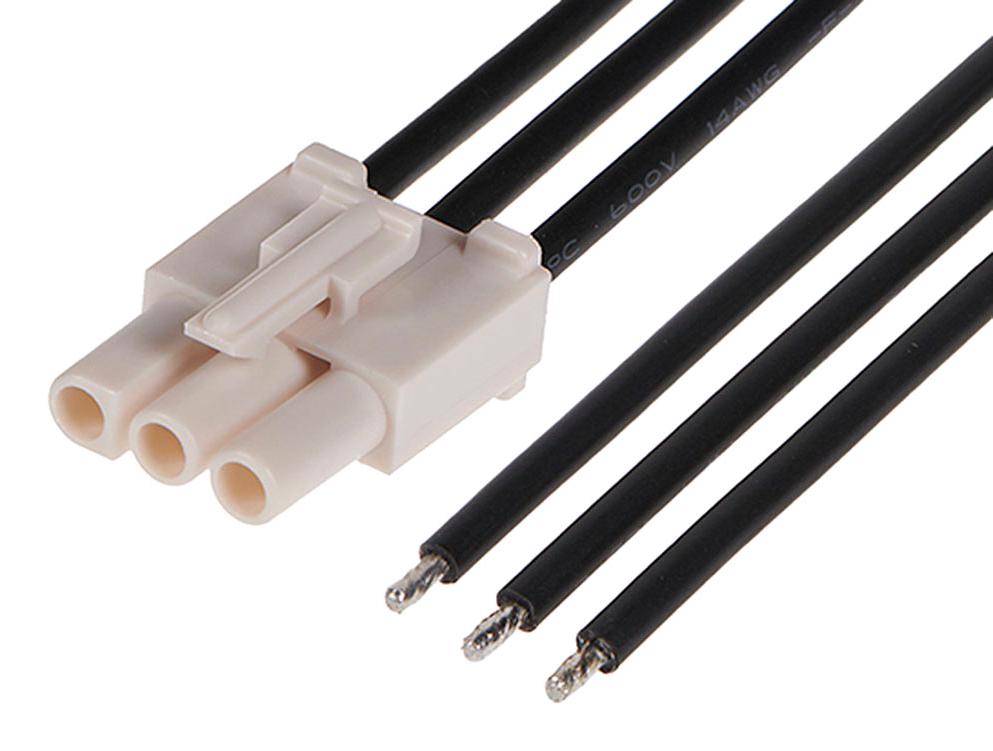

The 216291 series is a standard .093-inch female-to-pigtail cable assembly. It offers off-the-shelf availability with various cable lengths and supports a current rating of up to 12A. This assembly features positive locking for secure connections, as well as keying and polarizing features to prevent mis-mating during assembly. It is compatible with .093-inch connector housings and is intended for use with .093-inch terminals only. The assembly can operate at voltages up to 600V, has a maximum durability of 25 mating cycles (tin contact finish), and functions across a temperature range of -40°C to +105°C.
