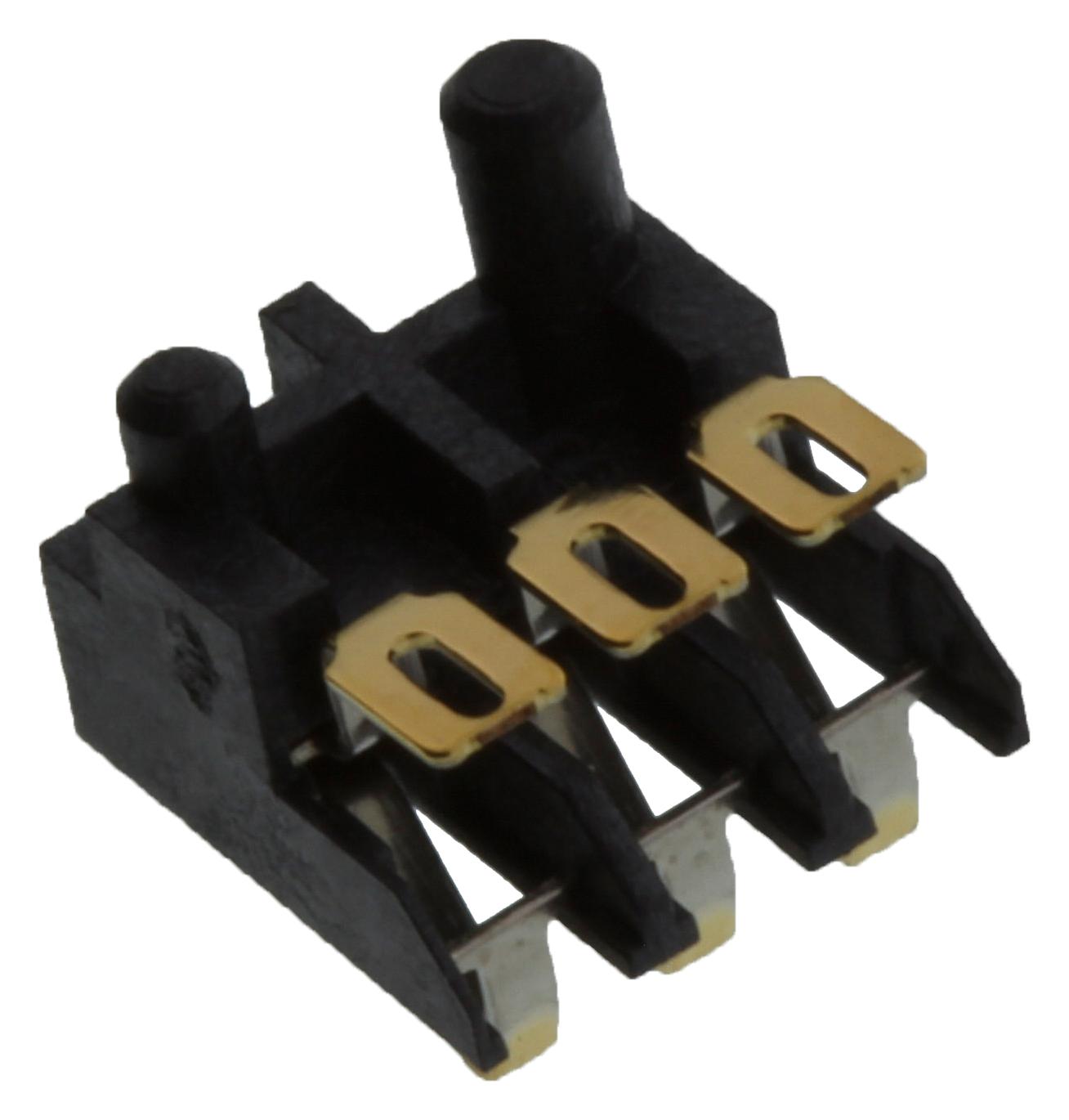

MOLEX 1050400001 Battery Connector
The MOLEX 105040-0001 is a versatile battery connector designed for board-to-board applications. With a 2.00mm pitch and 3 circuits, this connector offers a compact and efficient solution for power transmission. Its surface mount termination style simplifies integration into PCB designs. Constructed with a copper alloy and gold plating for both mating and termination interfaces, the connector ensures reliable electrical contact. The high-temperature thermoplastic resin provides durability and dimensional stability across a wide operating temperature range of -40°C to +85°C. It is RoHS compliant and suitable for various electronic devices and systems requiring a secure and dependable power connection.
MOLEX 1050400001 Battery Connector Specifications:
- overview: Battery Connectors
- description: 2.00mm Pitch Battery Connector, 3 Circuits, Surface Mount
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- circuits_loaded: 3
- circuits_maximum: 3
- current_max_per_contact: 1.0A
- voltage_max: 12V DC
- material_plating_mating: Gold
- material_plating_termination: Gold
- material_resin: High Temperature Thermoplastic
- durability_mating_cycles_max: 10000
- temperature_range_operating: -40° to +85°C
- plating_min_mating: 0.762µm
- plating_min_termination: 0.051µm
- material_metal: Copper Alloy
- net_weight: 0.164/g
- number_of_rows: 1
- orientation: Vertical
- termination_interface_style: Surface Mount
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- china_roh: Green Image
- packaging_type: Embossed Tape on Reel
- lead_free_process_capability_reflow_max_cycles: 001
- process_temperature_max_c: 250
- duration_at_max_process_temperature_seconds: 003
