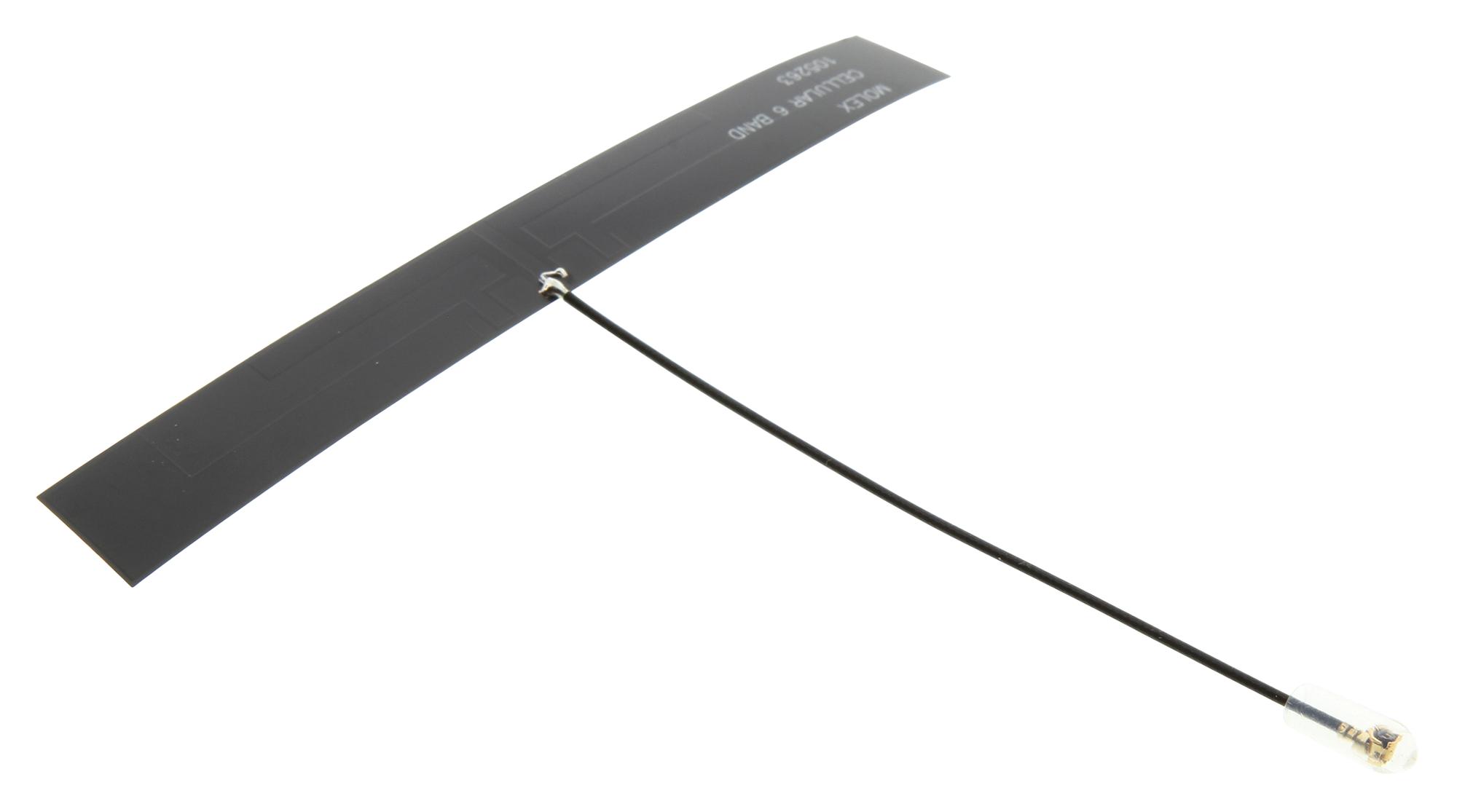

MOLEX 1052630002 Cellular 6-band Standalone Antenna
Molex's 105263-0002 Cellular 6-band Standalone Antenna is a compact and lightweight solution ideal for industrial, medical, and other wireless applications. Its ground-plane independence simplifies integration, eliminating the need for frequency tuning and band optimization. The antenna provides excellent communication range and coverage across GSM850, GSM900, GSM1800, GSM1900, UMTS band-1, and LTE band-7. It features a peel-and-stick adhesive for easy mounting and comes with flexible micro-coaxial cables in various lengths to optimize board space. This antenna is suitable for smart meters, smart grid concentrators, remote sensors, and electronic locks.
MOLEX 1052630002 Cellular 6-band Standalone Antenna Specifications:
- Frequency Band: Refer to Ordering Information
- Polarization: Linear
- Input Impedance: 50 Ohms
- Max PWR: 2 W / 33 dBm
- Reflection |S11|: Refer to Figure 1
- Total Efficiency: Refer to Figure 2
- Peak Gain: Refer to Ordering Information
- Connector Mating Force: Initial 20N max, 15N after 30 mating cycles
- Connector Unmating Force: Initial 2N min, 1.5N after 30 mating cycles
- Cable Pull-force: 18N max
- PCB Thickness: 0.10 mm (0.004")
- Operating Temperature: -30 to +75°C
- Connector Type: UFL-type
- Radiation Pattern: Refer to Figures 3b, 3c, 3d, 4b, 4c, 4d
- Total Average Efficiency (Low Band): 80%
- Total Average Efficiency (High Band): 70%
