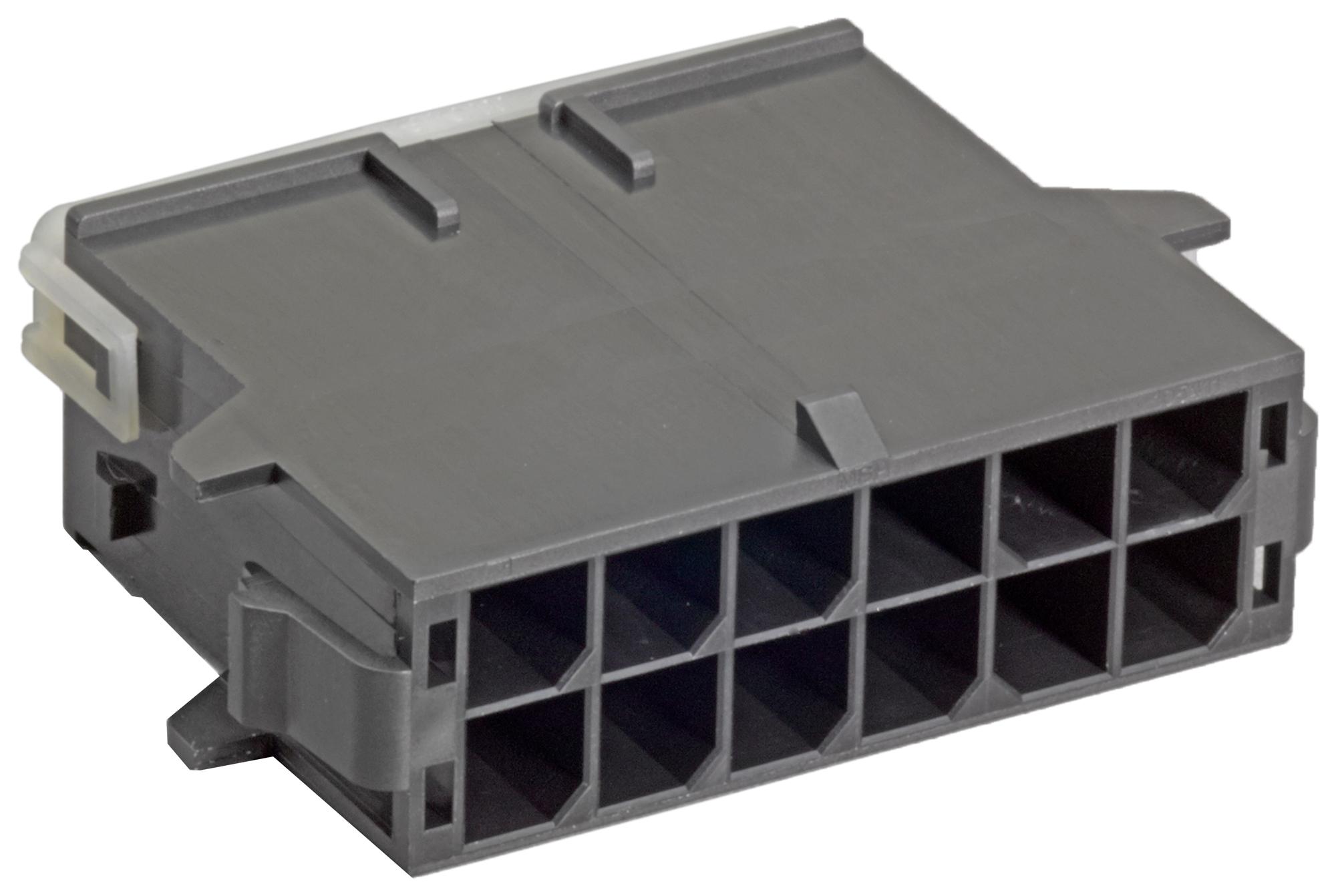

MOLEX 1054110102 Power Connector System
Mega-Fit Power Connectors provide a reliable, high-current connection system designed for industrial, automotive, and networking applications. Featuring a 5.70mm pitch, these connectors support 25.0A per circuit with fully protected, insulated header pins and receptacles. Their unique keying and polarization ensure proper mating, while the tangless design reduces handling damage risk. Suitable for hot-plugging up to 30 cycles at 48V, they deliver high power density, improved safety, and flexible installation options for commercial and industrial environments.
MOLEX 1054110102 Power Connector System Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Current leakage: <5mA
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire Friendly
- Contact Material: High-Conductivity Copper
- Plating Options: Gold (0.38 or 0.76 mm) or Tin
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40°C to +150°C
Buy the Molex 1054110102 – Reliable Power Connectors for Industrial Applications
Order the Molex Power Connector System today to enjoy high durability, secure connections, and versatile installation options suitable for industrial machinery, automotive, and networking equipment. With a 5.70mm pitch supporting 25A per circuit, these connectors ensure power density and reliability. The dual-row and single-row configurations, along with polarized, keyed, and tangless design, provide ease of assembly, protection against damage, and compliance with global standards. Perfect for demanding industrial, commercial, and automation applications requiring robust, safe, and efficient power connections.
Get Molex 1054110102 today—built for high-current, secure, and flexible electrical connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 1054110102?
You can click on the BUY or RFQ button to purchase 1054110102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054110102?
You can download the 1054110102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054110102?
MOLEX
