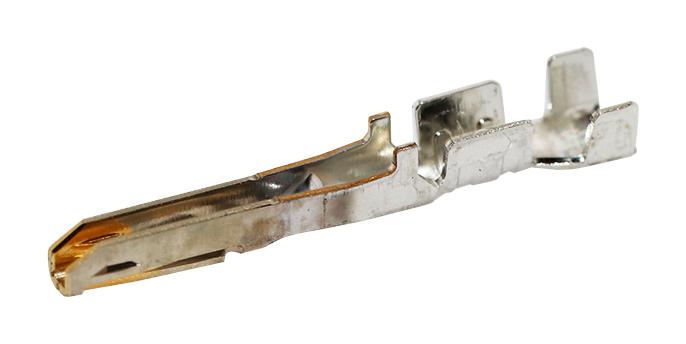

MOLEX 1053002300 Nano-Fit Crimp Terminal
The MOLEX 105300-2300 Nano-Fit Crimp Terminal is a precision-engineered component designed for secure and reliable wire-to-board connections in a wide range of electronic applications. Constructed from high-conductivity copper and featuring a gold plating over nickel finish, this terminal provides excellent electrical performance and corrosion resistance. It is specifically designed for use with Nano-Fit power connectors and is compatible with 20-22 AWG wire sizes, making it ideal for applications requiring compact and robust connections. The terminal's robust design ensures durability and long-term reliability, contributing to the overall performance of the connected system.
MOLEX 1053002300 Nano-Fit Crimp Terminal Specifications:
- Durability (mating cycles max): 50
- Gender: Female
- Material - Metal: High Conductivity Copper
- Material - Plating: Gold over Nickel
- Mating Material - Plating: Tin over Nickel
- Plating min - Mating: 0.762µm
- Plating min - Termination: 2.540µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.60mm
- Wire Size AWG: 20, 22
- Wire Size mm²: 0.30-0.50
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Application: Power, Wire-to-Board
- Product Family Series: 105300
- Packaging Type: Reel
- Net Weight: 0.100/g
- Wire Size AWG (UL1061): 20-22
- Wire Size AWG (UL1007): and 22
Buy the 105300-2300 MOLEX Nano-Fit Crimp Terminal | myMectronic
Purchase the MOLEX 105300-2300 Nano-Fit Crimp Terminal securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1053002300?
You can click on the BUY or RFQ button to purchase 1053002300 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1053002300?
You can download the 1053002300 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1053002300?
MOLEX
