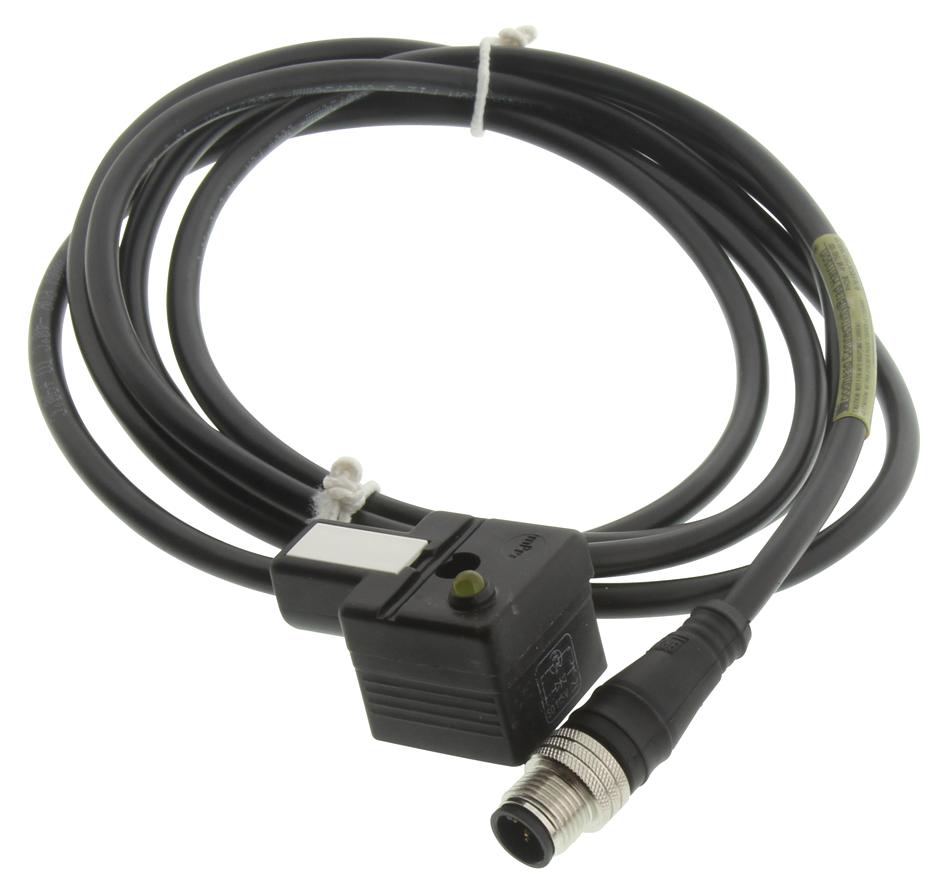

MOLEX 1210360799 Industrial M12 Connector
The mPm DIN Valve Connectors are versatile industrial cordsets designed for reliable automation and control systems. This specific assembly features a Micro-Change M12 connector with 5 poles, transitioning from straight to 90° male ends, and a length of 2.0 meters. Suitable for 110V applications, these connectors have an IP65 rating, ensuring protection against dust and water. Made from durable materials like nickel-plated brass and copper alloy, they are ideal for industrial environments requiring robust, secure connections in automation setups.
MOLEX 1210360799 Industrial M12 Connector Specifications:
- Series: 121036
- Product Family: Industrial Cordsets
- Series: 121036
- Type: Double Ended
- IP Rating: IP65
- Material - Contact: Copper Alloy
- Material - Cable Jacket: PUR
- Material - Connector Body: Polypropylene
- Material - Plating Mating: Gold over Nickel
- Material - Coupling Nut: Nickel-plated Brass
- Cable Diameter: 5.72mm (.225")
- Cable Length: 2.0m (6.56')
- Color - Cable Jacket: Black
- Coupling Style: Threaded
- Gender: Male-Male
- Poles: 5
- Temperature Range - Operating: -25°C to +75°C
- Wire Size AWG: 22
- Electrical: 1.5A, 110V
- Certifications: N/A
Buy the Molex Series 121036 Micro-Change M12 IP65 Connectors: 1210360799
Enhance your industrial automation setup with this rugged 5-pole Micro-Change M12 DIN connector. Designed for secure, waterproof connections, it features IP65 protection, a 2-meter length, and durable materials like nickel-plated brass and copper alloy. Whether you’re automating machinery or control systems, this connector’s reliable design ensures safe operation in harsh environments. Easy to install with a threaded coupling, it supports 110V applications and is ideal for industrial manufacturing, automation, and control system integration, ensuring high performance and longevity.
Buy Molex 1210360799 now and experience unmatched reliability and performance in industrial automation and control applications.
Frequently Asked Questions
Where can I buy MOLEX 1210360799?
You can click on the BUY or RFQ button to purchase 1210360799 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1210360799?
You can download the 1210360799 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1210360799?
MOLEX
