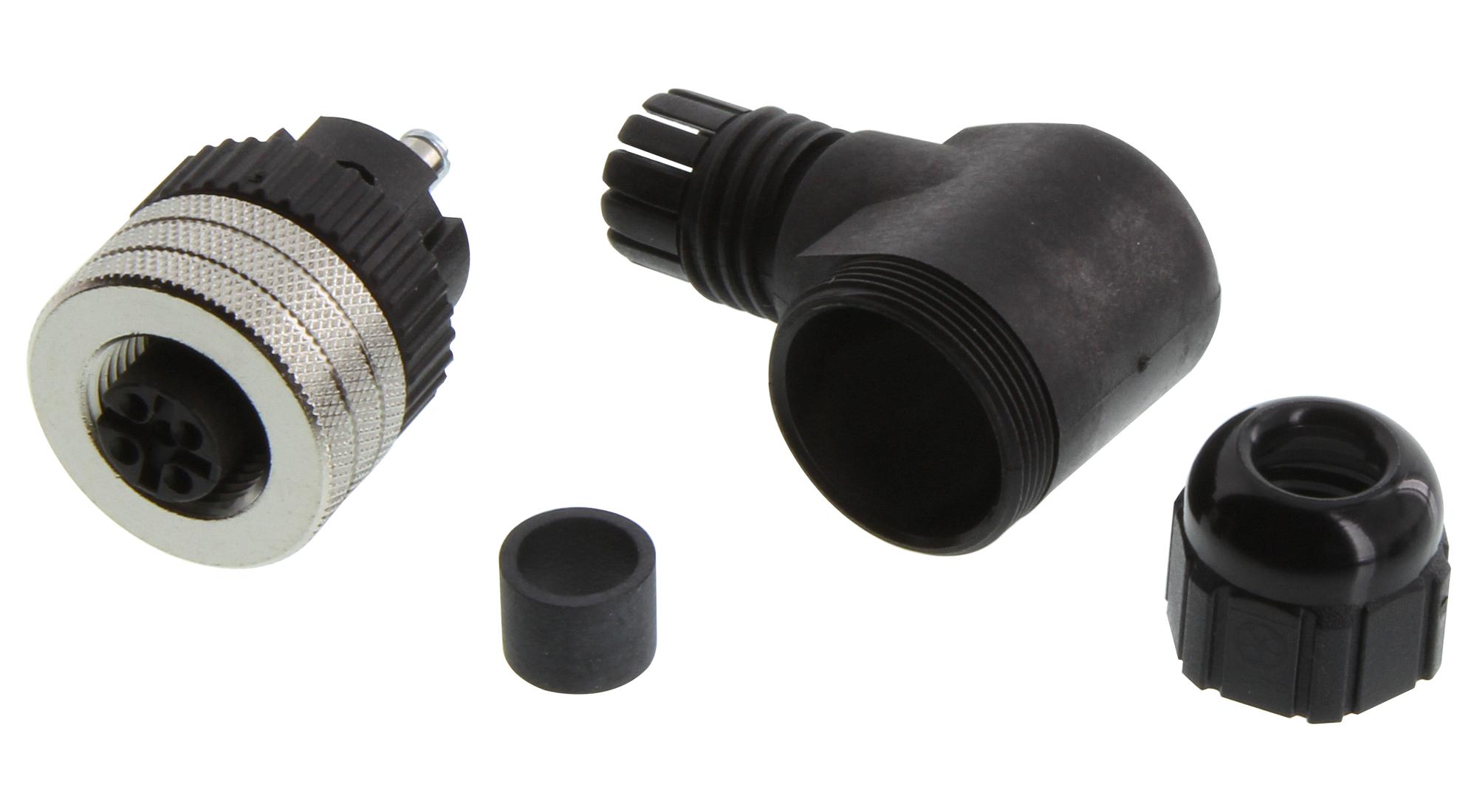

MOLEX 1200710044 industrial M12 connector
The Micro-Change M12 connector is a reliable, IP67-rated field-attachable connector designed for industrial automation and sensor applications. Featuring a 90° angle female design with five poles, it accommodates cable diameters of 3.30 to 6.60mm and supports operating temperatures from -25°C to +90°C. Made from nickel-plated brass with a PA body, it ensures durability and corrosion resistance. This connector complies with RoHS, REACH, UL, and CSA standards, making it ideal for harsh industrial environments requiring secure and waterproof connections.
MOLEX 1200710044 industrial M12 connector Specifications:
- Product Family: Series
- Approvals: CSA, RoHS, REACH
- IP Rating: IP67
- Material - Contact: Nickel-plated Brass
- Material - Connector Body: PA
- Coupling Type: Internal Thread
- Cable Diameter: 3.30-6.60mm (.130-.260")
- Gender: Female
- Keyway: Single
- Orientation: 90° Angle
- Poles: 5
- Temperature Range - Operating: -25°C to +90°C
- Wire Size AWG: 18
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 30V AC / 36V DC
- Net Weight: 29.937g
- Material - Coupling Nut: Nickel-plated Brass
- Diagnostics / LEDs: No
Buy the Molex 1200710044 – Reliable M12 Connector for Industrial Applications
Purchase the Molex 1200710044 industrial M12 connector online today. With IP67 protection, five poles, and a 90° angle design, it offers exceptional durability, waterproof sealing, and secure connections for automation and sensor setups. Made from corrosion-resistant nickel-plated brass with a PA body, it supports comprehensive standards like RoHS and CSA. Its robust design and reliable performance ensure optimal operation in harsh environments, making it the ideal choice for industrial automation, machinery, and equipment requiring durable, waterproof, and easy-to-install connectors.
Get Molex 1200710044 today—built for precision and long-lasting durability in industrial automation solutions.
