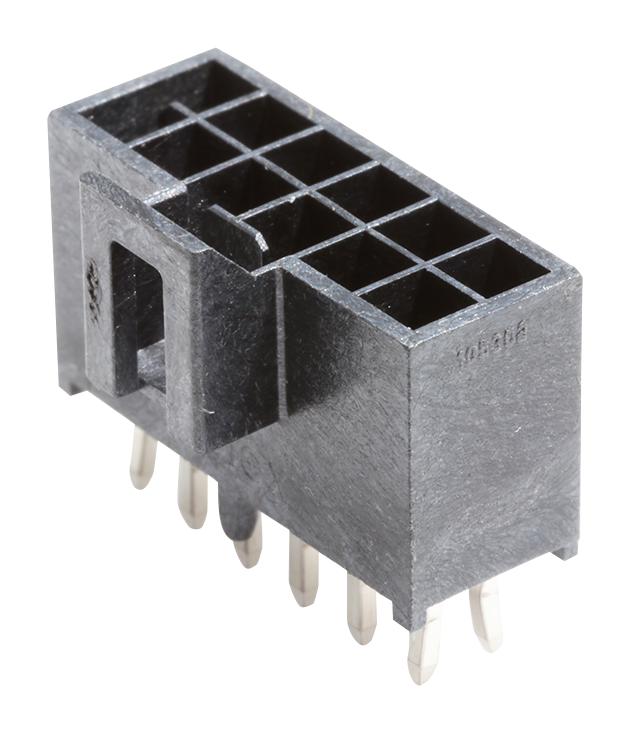

MOLEX 1053101312 Nano-Fit Power Connector
The MOLEX 105310-1312 Nano-Fit Power Connector is a robust and compact vertical header ideal for wire-to-board applications in various industrial settings. Its dual-row design accommodates 12 circuits, and the 2.50mm pitch ensures efficient space utilization. Constructed with brass and featuring gold-over-nickel plating for mating and tin-over-nickel for termination, this connector provides excellent electrical conductivity and durability. The connector is also glow-wire capable and polarized, enhancing safety and ease of use. It is commonly used in power distribution systems and other applications requiring reliable power connections.
MOLEX 1053101312 Nano-Fit Power Connector Specifications:
- Series: 105310
- Product Family: Nano-Fit Power Connectors
- Application: Wire-to-Board
- Circuits (Loaded): 12
- Circuits (maximum): 12
- Color - Resin: Black
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm, 2.40mm
- Packaging Type: Tray
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible (SMC): No
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 300V
- Temperature Range - Operating: -40° to +115°C
- Agency Certification: CSA UL
- LR Number: LR19980
- E Number: E29179
- Net Weight: 1.070/g
