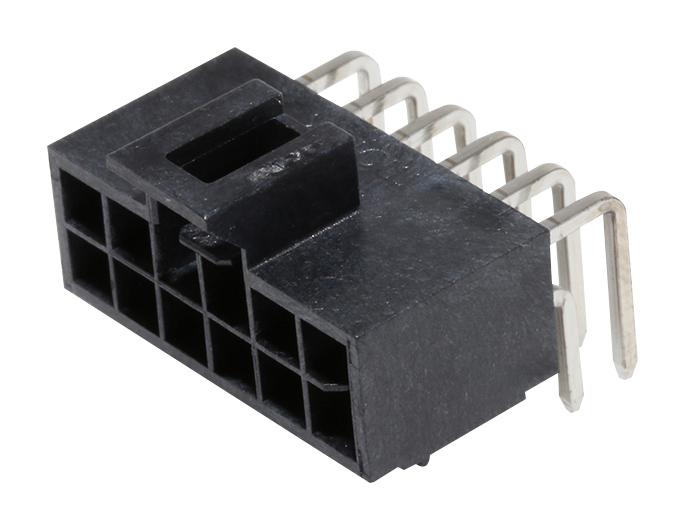

MOLEX 1053141112 Nano-Fit Header
The MOLEX 105314-1112 Nano-Fit Right-Angle Header is a compact and reliable solution for wire-to-board power connections. Designed with a 2.50mm pitch and dual-row configuration, it accommodates 12 circuits, making it ideal for applications requiring a moderate number of connections. The tin plating ensures excellent solderability and corrosion resistance, while the right-angle orientation simplifies PCB layout and reduces space constraints. Its glow-wire capability and robust construction make it suitable for a wide range of industrial and consumer electronics applications, including power supplies, battery management systems, and other critical power distribution networks. The Nano-Fit system is known for its secure locking mechanism and ease of use, contributing to efficient assembly processes.
MOLEX 1053141112 Nano-Fit Header Specifications:
- Circuits (Loaded): 12
- Circuits (maximum): 12
- Color - Resin: Black
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 1.300 g
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm, 2.40mm
- Packaging Type: Tray
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Plating min - Mating: 1.524µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Current - Maximum per Contact: 7.5A
- Voltage - Maximum: 250V AC (RMS)/DC
- Mates With: Nano-Fit Receptacle Housing 1053081212
