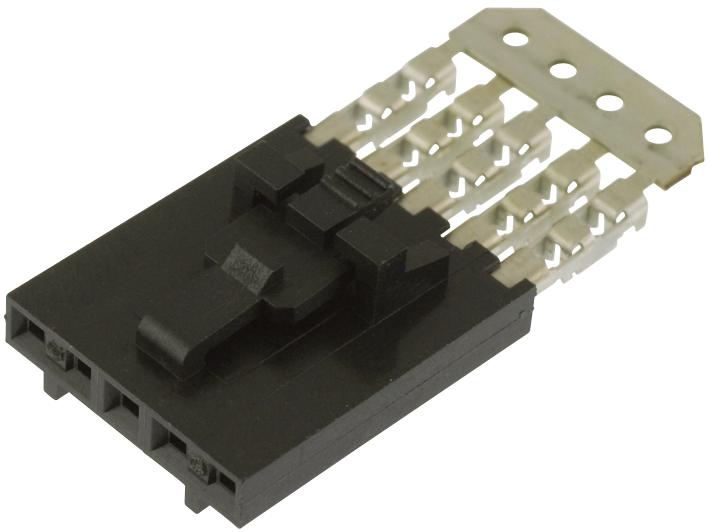

MOLEX 14600042 Insulation Displacement Connector Assembly
The MOLEX 14-60-0042 is a versatile insulation displacement connector assembly designed for applications requiring secure and reliable connections. With a 2.54mm pitch and 4 circuits, this connector is suitable for a range of applications including industrial equipment, automation systems, and consumer electronics. It features a positive lock mechanism for enhanced stability and is compatible with wire sizes up to 24 AWG. The connector's tin plating provides excellent corrosion resistance, ensuring long-term performance in demanding environments. Its vertical entry angle and stackable design further enhance its versatility and ease of integration into various systems.
MOLEX 14600042 Insulation Displacement Connector Assembly Specifications:
- Pitch: 2.54mm
- Circuits (Loaded): 4
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 3.0A
- Material - Plating: Tin
- Material - Resin: Polyester Alloy
- Flammability: 94V-0
- Operating Temperature Range: -40° to +105°C
- Wire Size AWG: 24
- Number of Rows: 1
- Mating Interface Plating min: 3.810µm
- Termination Plating min: 1.905µm
- Net Weight: 0.772/g
- PCB Retention: Yes
- Stackable: Yes
- Surface Mount Compatible (SMC): Yes
- Wire Insulation Diameter: 1.35mm max.
- Material - Metal: Phosphor Bronze
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Entry Angle: Vertical
- Durability (mating cycles max): 25
