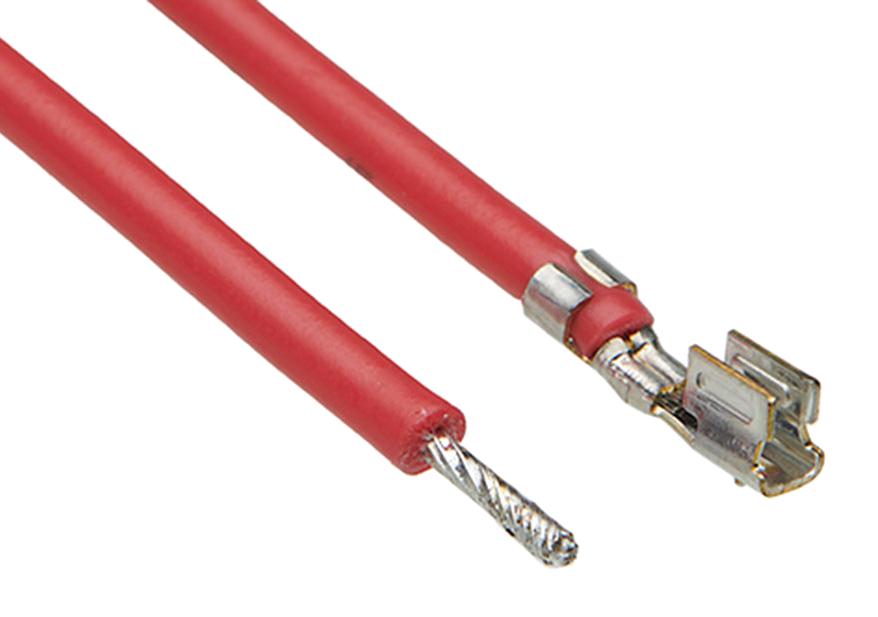

MOLEX 2175112102 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2102 is a pre-crimped lead assembly designed for use with L1NK 250 connectors. This lead provides a pre-terminated connection solution, simplifying assembly and reducing labor costs. It features a tin plating for enhanced conductivity and corrosion resistance, a 150mm length for flexibility, and 26 AWG wire suitable for a range of applications. The assembly is RoHS compliant, indicating adherence to environmental standards. It is ideal for applications requiring reliable and efficient connections between L1NK 250 connectors.
MOLEX 2175112102 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead L1NK 250 Female-to-L1NK 250 Female
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- length: 150.00mm
- wire_gauge: 26 AWG
- color: Red
- circuits_loaded: 1
- gender: Female-Female
- material_metal: Copper Alloy
- material_resin: PVC
- net_weight: 0.524/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119666
- elv: Not Relevant
- rohs: China RoHS Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- drawing_number: 2175112101-000
