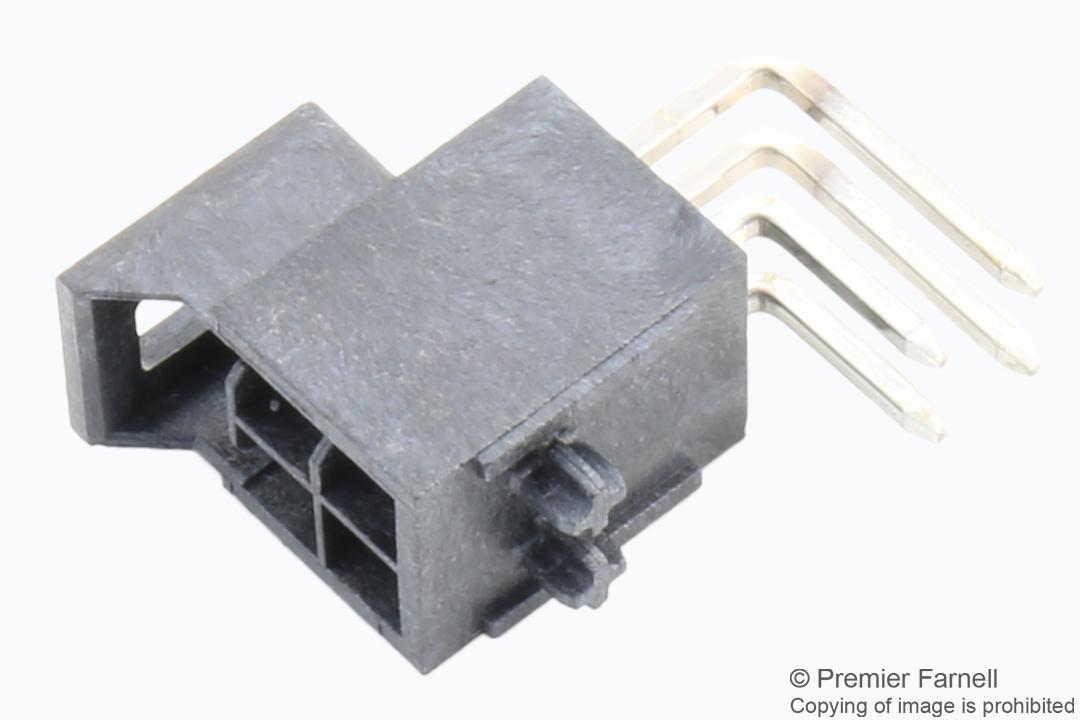

MOLEX 1053141204 Nano-Fit Power Connector
The MOLEX 105314-1204 Nano-Fit Power Connector is a compact and reliable solution for wire-to-board applications. Designed with a right-angle orientation and a 2.50mm pitch, this connector offers a high-density interconnect suitable for various electronic devices. The gold plating on the mating contacts ensures excellent conductivity and durability, while the tin-nickel plating on the termination contacts facilitates secure soldering. Its robust construction and polarized design contribute to ease of assembly and reliable performance in demanding environments. This connector is ideal for applications in consumer electronics, industrial equipment, and automotive systems.
MOLEX 1053141204 Nano-Fit Power Connector Specifications:
- Series: 105314
- Description: Nano-Fit™ Right Angle Header, Through Hole
- Pitch - Mating Interface: 2.50mm
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Black
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Orientation: Right Angle
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm, 2.40mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Temperature Range - Operating: -40°C to +115°C
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 300V
- Net Weight: 0.500/g
