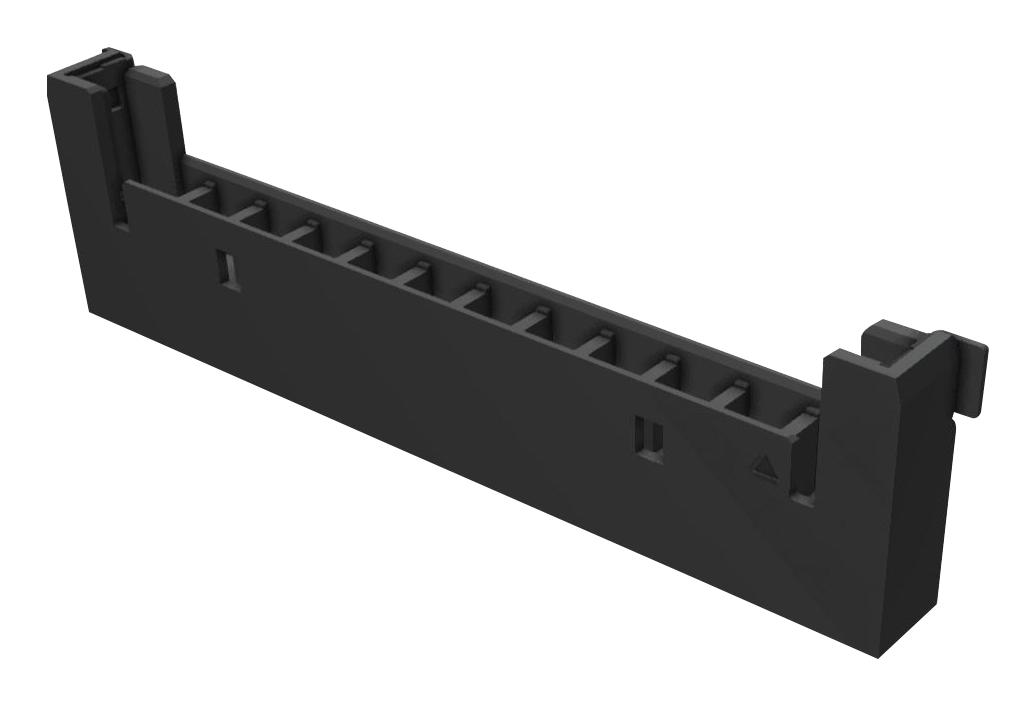

MOLEX 5040501191 Wire-to-Board Connector
The Pico-Lock Connector System features a 1.50mm pitch wire-to-board header designed for reliable connections in electronic applications. This dual-row, right-angle, surface-mount connector is plated with gold over nickel for enhanced durability and conductivity. It supports up to 11 circuits with a mated height of 2.00mm, ensuring secure and stable connections. Made from high-temperature thermoplastic with copper alloy contacts, it offers a maximum current of 3.5A per contact and a voltage rating of 150V AC/DC. Suitable for use in compact electronic assemblies requiring precise, high-quality connections.
MOLEX 5040501191 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 11
- Maximum Current per Contact: 3.5A
- Maximum Voltage: 150V AC/DC
- Material - Metal: Copper Alloy
- Plating: Gold over Nickel
- Material - Resin: High-Temperature Thermoplastic
- Operating Temperature Range: -40°C to +105°C
- Mated Height: 2.00mm
- Surface Mount Compatible: Yes
- Durability: Suitable for multiple mating cycles
- Color - Resin: Not specified
- Locking Mechanism: Positive Lock
Buy the Buy Molex Pico-Lock Connector Part Number 5040501191 Online
Purchase the Molex Pico-Lock Connector designed for secure electrical connections in compact electronic devices. Featuring a 1.50mm pitch, dual-row, surface-mount design, and gold over nickel plating, this connector provides high durability and excellent conductivity. It supports up to 11 circuits with a maximum current of 3.5A per contact and a voltage of 150V. Ideal for applications demanding reliable locking mechanisms, it ensures lasting performance even in demanding environments. Available now for easy online ordering.
Get Molex Pico-Lock Connector 5040501191 today—engineered for reliable, high-density electronic connections with durable gold over nickel plating.
Frequently Asked Questions
Where can I buy MOLEX 5040501191?
You can click on the BUY or RFQ button to purchase 5040501191 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5040501191?
You can download the 5040501191 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5040501191?
MOLEX
