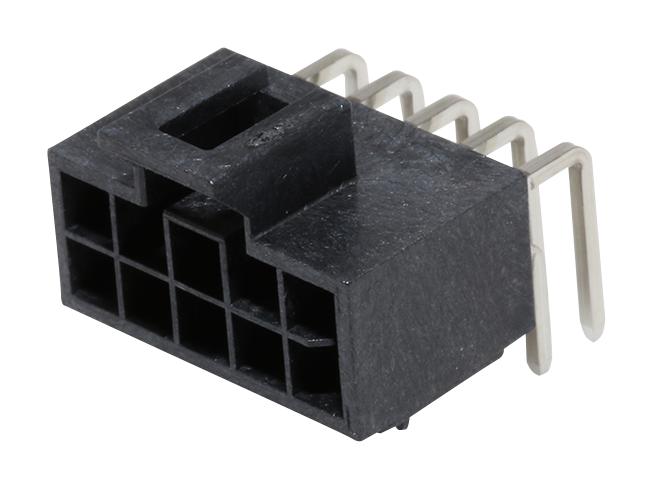

MOLEX 1053141310 Nano-Fit Power Connector
The MOLEX 105314-1310 is a Nano-Fit power connector, specifically a right-angle header suitable for through-hole mounting. This connector offers a compact design with a 2.50mm pitch and dual-row configuration, accommodating 10 circuits. The gold plating on the mating interface ensures low contact resistance and excellent signal transmission, while the tin over nickel plating on the termination interface provides a robust and solderable connection. Its glow-wire capability and RoHS compliance make it suitable for a wide range of industrial and consumer electronics applications, including power distribution and signal routing in compact devices.
MOLEX 1053141310 Nano-Fit Power Connector Specifications:
- Series: 105314
- Product Family: Nano-Fit Power Connectors
- Application: Wire-to-Board
- Circuits (Loaded): 10
- Circuits (maximum): 10
- Color - Resin: Black
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 1.100/g
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm, 2.40mm
- Packaging Type: Tray
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible (SMC): No
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 300V
- Temperature Range - Operating: -40° to +115°C
- Termination Interface: Style: Through Hole
