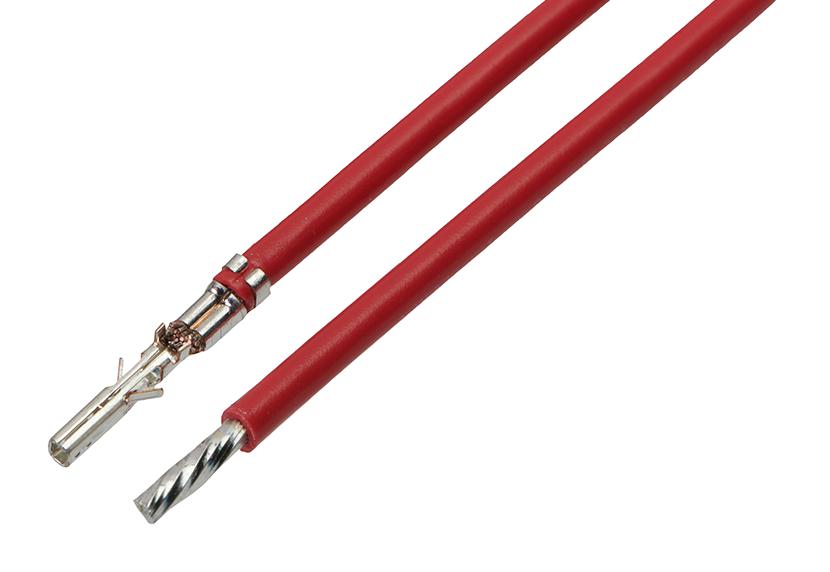

MOLEX 2147612105 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 2147612105 is a pre-crimped lead connector designed for power, wire-to-board, and wire-to-wire applications. This Micro-Fit 3.0 female-to-pigtail connector offers a convenient, ready-to-use solution for connecting wires. It features tin plating for reliable electrical contact and a red insulation color for easy identification. The connector is suitable for various industrial and commercial applications where a pre-terminated connection is required.
MOLEX 2147612105 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail, Tin (Sn) Plated, 450.00mm Length, 22 AWG, Red
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Micro-Fit 3.0 Crimp Terminals
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- net_weight: 2.052/g
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 22
- wire_cable_type: UL 10002
- current_maximum_per_contact: 8.5A
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- upc: 193264574469
- use_with: Micro-Fit 3.0 Receptacle Housings 43025, 43645; Micro-Fit BMI Panel Mount Receptacle Housings 44133, 46623
