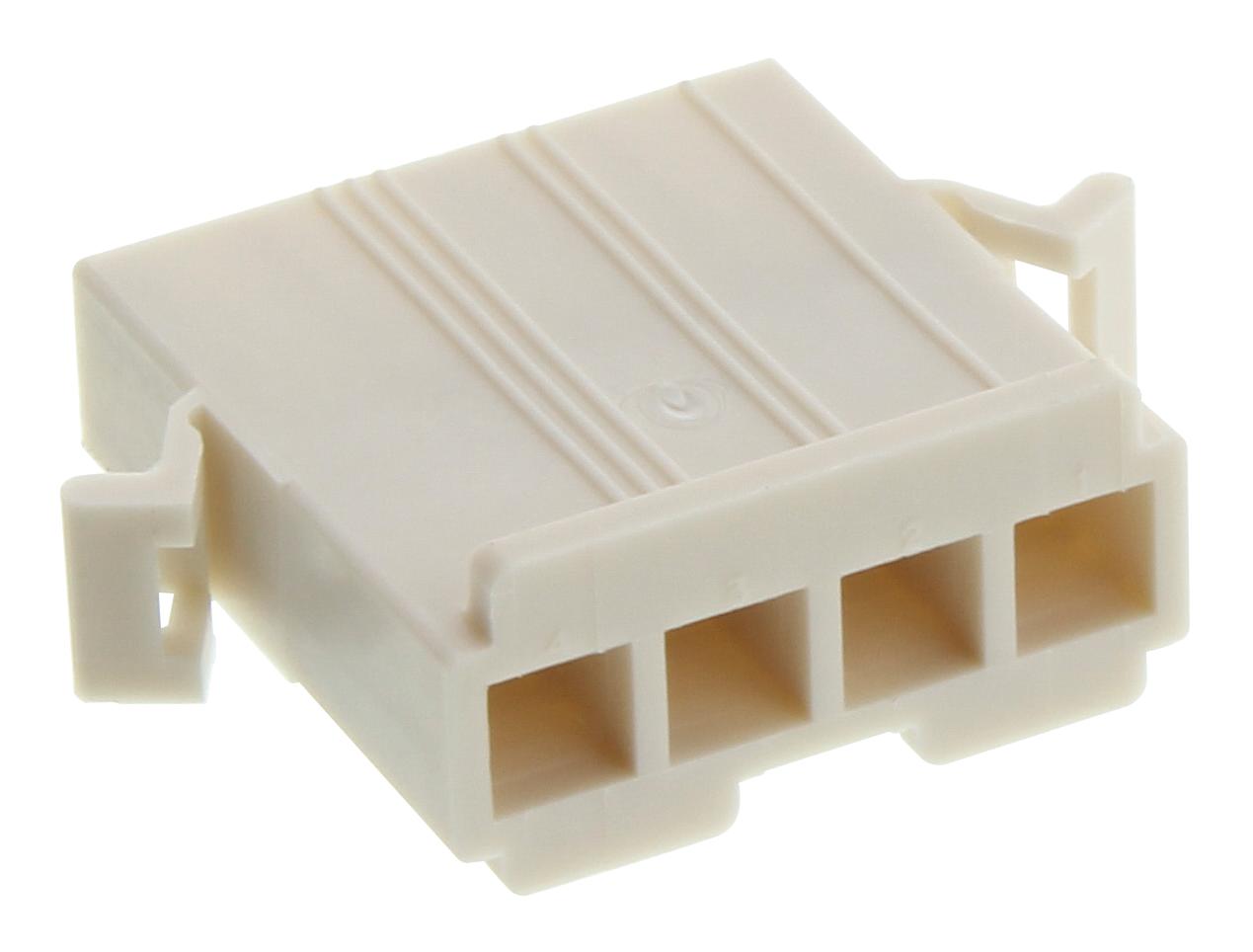

MOLEX 19092047 Standard .093 Pin and Socket Housing
The MOLEX 19-09-2047 is a robust connector housing within the 3191 series, designed for reliable wire-to-wire connections. This .093" pin and socket housing features a positive latch mechanism for secure mating, a UL 94V-0 flammability rating for enhanced safety, and a panel mount design for easy integration into various systems. It supports up to 4 circuits and is polarized to the mating part, ensuring correct alignment. Commonly used in power applications, this housing provides a dependable connection solution for a wide range of industrial and commercial applications.
MOLEX 19092047 Standard .093 Pin and Socket Housing Specifications:
- diameter: 2.36mm
- circuits_max: 4
- flammability: 94V-2
- gender: Plug
- keying: None
- lock_to_mating_part: Yes
- material: Nylon
- rows: 1
- panel_mount: Yes
- pitch_mating_interface: 6.70mm
- temperature_range_operating: -40° to +105°C
- current_max_per_contact: 9.0A
- weight: 3.694/g
- packaging_type: Bag
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- china_roh: Green Image
- engineering_number: 3191-4P-201
- drawing_number: SD-3191-4X
- product_specification: PS-02-09
