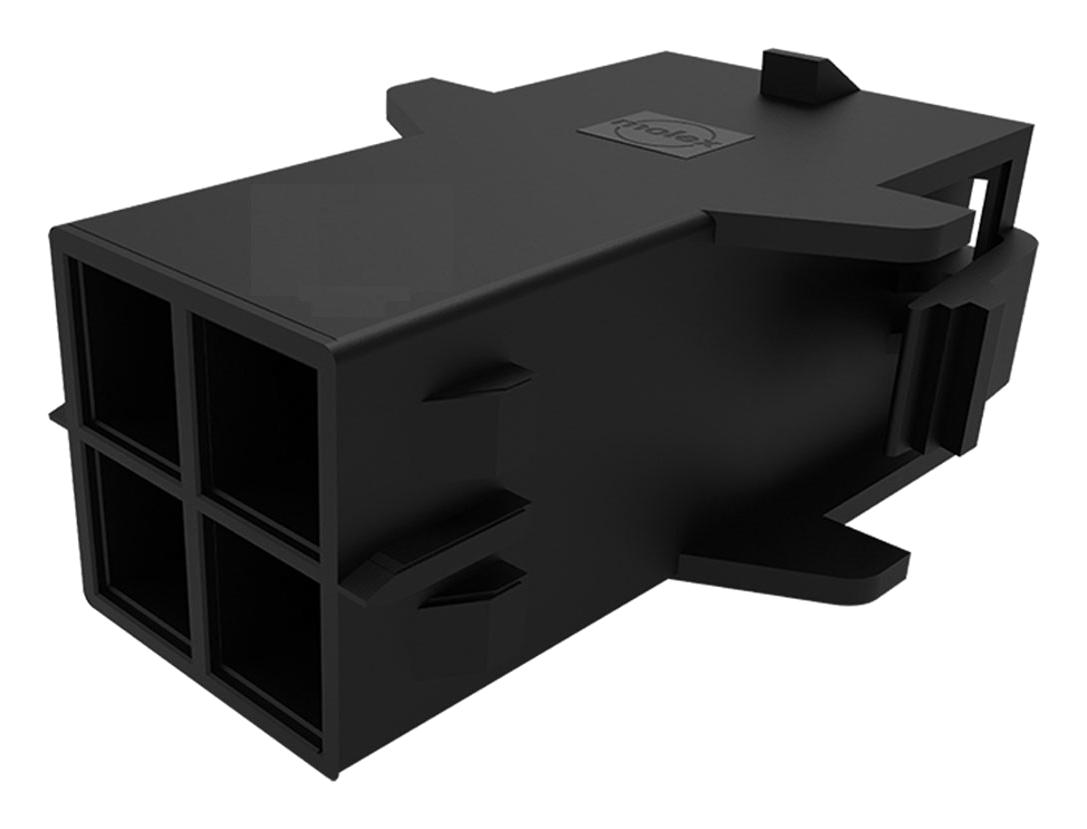

MOLEX 1054111110 Power Connector
Mega-Fit Power Connectors are high-current, power-dense solutions designed for reliable electrical connections in various applications. Featuring fully protected header pins and receptacle terminals, these connectors support 25.0A per circuit and are capable of hot-plugging up to 30 cycles at 48V. They come with keying options to prevent mis-mating, isolated terminals for protection, and a robust latch design for secure locking. Suitable for home appliances, industrial machinery, telecommunications, and vehicle electronics, they ensure long-term performance and ease of assembly. Crafted with UL 94 V-0 plastic, gold or tin plating, and RoHS compliance, these connectors meet rigorous safety standards.
MOLEX 1054111110 Power Connector Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire Compatible
- Contact Material: High-Conductivity Copper
- Plating Options: Gold 0.38 or 0.76 mm, Tin
- Solder Tail Area: Tin
- Operating Temperature: -40°C to +150°C
- PCB Thickness: 1.60 mm and 2.40 mm
- Packaging: Bag, Reel, Tray
- RoHS Compliant, Halogen Free, Glow Wire Capable
Buy the Molex Series Mega-Fit Power Connectors: 1054111110
Enhance your electronic systems with Molex Mega-Fit Power Connectors offering 25A per circuit. Engineered with keying, isolation, and durable locking mechanisms, these connectors ensure reliable and easy connections for industrial machinery, home appliances, telecommunication gear, and automotive electronics. Made from high-quality materials, they meet UL and RoHS standards, supporting a temperature range of -40°C to +150°C. Compatible with a variety of receptacles and headers, they support quick assembly, hot-plugging, and long-term performance in demanding environments. Purchase online today for dependable power connections.
Get Molex Mega-Fit Power Connectors 1054111110 today—built for high-current, high-density power delivery in industrial and consumer applications.
Frequently Asked Questions
Where can I buy MOLEX 1054111110?
You can click on the BUY or RFQ button to purchase 1054111110 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111110?
You can download the 1054111110 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111110?
MOLEX
