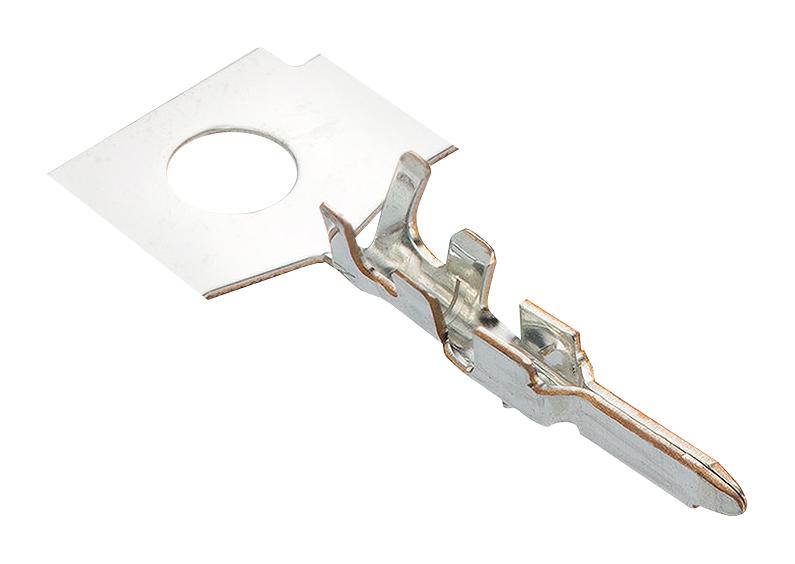

MOLEX 501338000 PicoBlade Male Crimp Terminal
The PicoBlade connector system features 1.25mm pitch crimp terminals designed for reliable wire-to-wire signal connections in electronic devices. The male crimp terminal, suitable for 28-32 AWG wires, is plated with tin for enhanced durability and corrosion resistance. It supports a maximum current of 0.8A to 1.0A per contact and operates at a maximum voltage of 125V. Packaged on reels, these terminals are compatible with crimping equipment and application tooling for consistent, high-quality connections in compact electronic assemblies.
MOLEX 501338000 PicoBlade Male Crimp Terminal Specifications:
- Pitch: 1.25mm
- Gender: Male
- Material: Phosphor Bronze
- Plating: Tin (Mating and Termination)
- Wire Size: 28, 30, 32 AWG
- Wire Diameter: 0.50-1.00mm
- Maximum Current: 0.8A to 1.0A per contact
- Maximum Voltage: 125V
- Packaging: Reel
- Crimping: Compatible with crimp or compression techniques
- Product Series: 50133
- RoHS Compliance: Yes
- Halogen-Free: Yes
Buy the Molex 0501338000 – Reliable PicoBlade Crimp Terminal for Industrial Applications
Purchase Molex 0501338000 online today and enjoy top-tier signal connection solutions suitable for electronic equipment. These 1.25mm pitch male crimp terminals are ideal for wire-to-wire applications, supporting 28-32 AWG wires, with tin plating for durability. Packaged on reels for easy handling, they ensure consistent crimp quality and reliable electrical performance. Suitable for various industrial and electronic assembly needs, these terminals meet RoHS standards, are halogen-free, and compatible with multiple crimping tools to facilitate efficient installation and maintenance.
Buy Molex 0501338000 now and experience unmatched reliability and performance with high-quality, compact wiring solutions.
Frequently Asked Questions
Where can I buy MOLEX 501338000?
You can click on the BUY or RFQ button to purchase 501338000 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 501338000?
You can download the 501338000 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 501338000?
MOLEX
