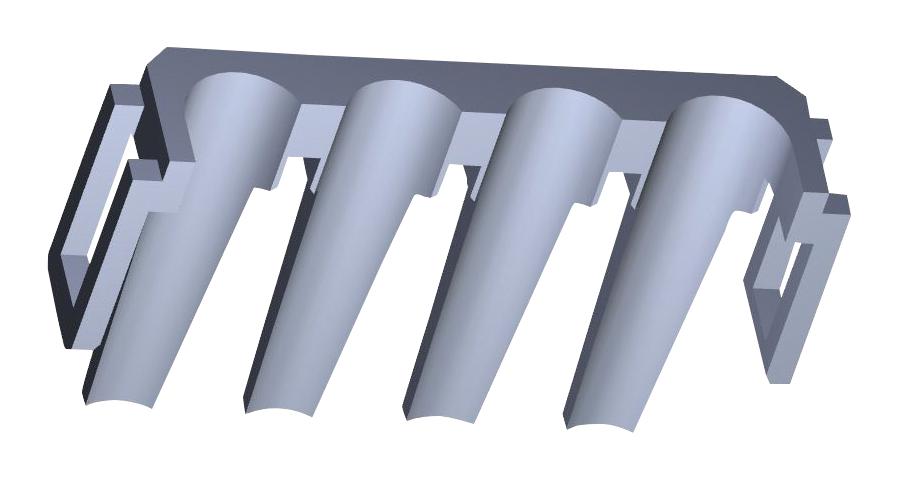

MOLEX 1054150004 Terminal Assurance Clip
This Mega-Fit Terminal Position Assurance retainer is designed for 4 circuits with a 5.70mm pitch, ensuring secure connections in power distribution systems. Made from durable nylon resin, it is UL 94V-0 flame-retardant and glow-wire capable, suitable for operating temperatures from -40°C to +105°C. It integrates seamlessly with Mega-Fit plug and receptacle housings, providing reliable mechanical retention and safety through terminal position assurance. Compatible with Mega-Fit series power connectors, it supports efficient and secure electrical connections in various industrial and commercial applications, ensuring compliance with RoHS and halogen-free standards.
MOLEX 1054150004 Terminal Assurance Clip Specifications:
- Number of Circuits: 4
- Maximum Circuits: 4
- Material: Nylon
- Color: Natural
- Temperature Range: -40°C to +105°C, -40°C to +120°C
- Flammability: UL 94V-0, Glow-Wire Capable
- Reference Drawing Number: 768232000-AS-000
- Application Specification: 768232000-AS-000, 1054171000-PS-000
- Product Family: Mega-Fit
- Component Type: Terminal Position Assurance
- Series: 105415
- Packaging: Bag
- Net Weight: 0.340g
- Locks to Mating Part: Yes
Buy the Molex Series 105415 Mega-Fit Terminal Position Assurance 1054150004
Secure your electrical connections with the Molex Series 105415 Mega-Fit Terminal Position Assurance clip. Designed for 4 circuits with a 5.70mm pitch, it offers robust flame-retardant, UL 94V-0 rated performance. Made from durable nylon, it ensures reliable mechanical retention when used with Mega-Fit plug and receptacle housings. Compatible with industry standards, this retainer operates within -40°C to +105°C temperature range, meeting RoHS and halogen-free standards for safety and environmental compliance. Order online today for dependable, high-quality connection safety.
Order your Molex Series 105415 Mega-Fit Terminal Position Assurance 1054150004 today and ensure your power connections are secure and compliant with safety standards.
