MOLEX 2183971034 Datasheet & Stock

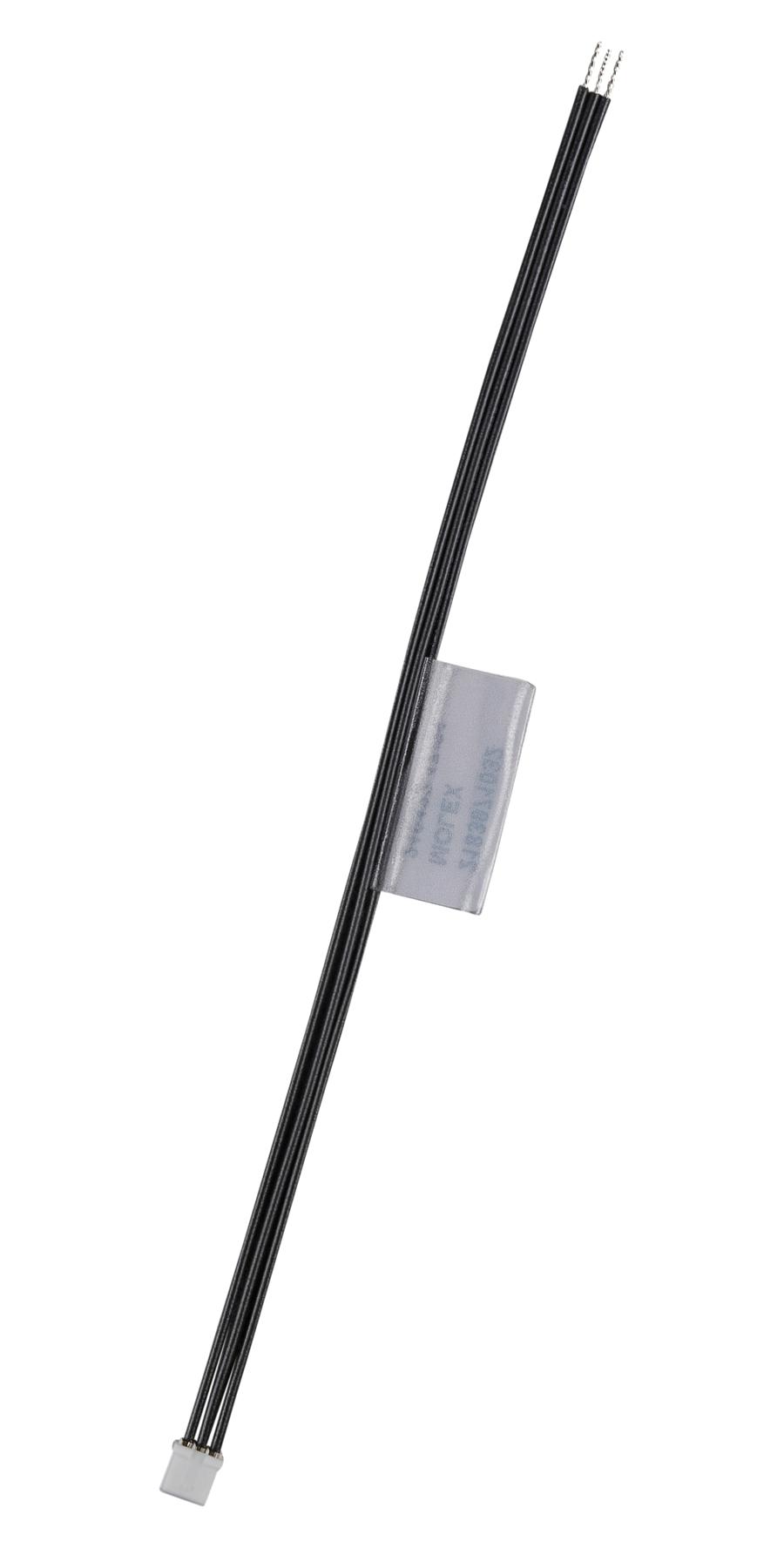

The Pico-SPOX Series 2183971034 is an off-the-shelf (OTS) cable assembly featuring a 1.5mm pitch connector suitable for prototyping and preproduction. It utilizes popular terminals for easy access to crimp applicators, with a vertical and right-angle single-row header equipped with a friction lock to ensure secure mating and terminal retention. The connector design offers approximately 30% space savings compared to a 2mm wire-to-board system. The assembly includes a UL and CSA-certified plug header with polarization keys to prevent mismating, and is designed for automatic SMT assembly. It supports a maximum voltage of 250VAC and a maximum current of 2.5A per contact, using UL 10002 24AWG wire with a nylon housing, phosphor bronze contacts with tin plating, and a natural resin color. It is suitable for applications in consumer electronics, industrial automation, and MedTech, with durability up to 10 cycles and an operating temperature range from -10°C to +105°C.
Frequently Asked Questions
Where can I buy MOLEX 2183971034?
You can click on the BUY or RFQ button to purchase 2183971034 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2183971034?
You can download the 2183971034 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2183971034?
MOLEX
