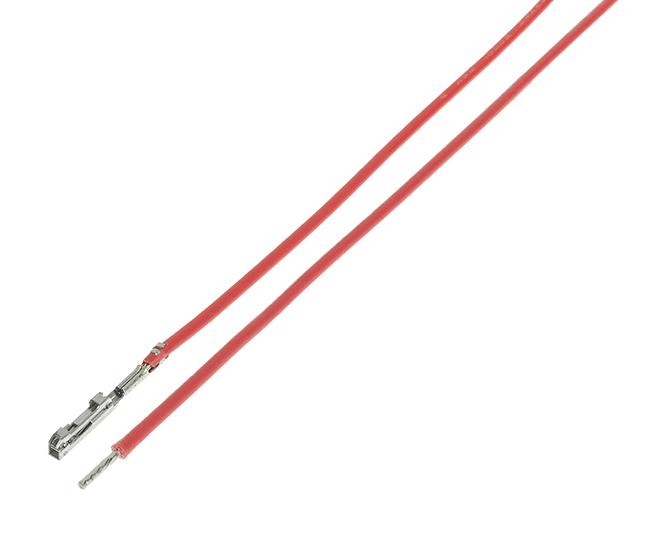

MOLEX 2177912103 Pre-Crimped Lead
Molex's pre-crimped leads in the 217791 series offer a reliable and cost-effective solution for prototyping, preproduction, and mass manufacturing. Featuring a female-to-pigtail design with a 1.8 mm pitch, these leads are made from durable copper alloy and plated with tin for enhanced contact reliability. The 225 mm long cable is insulated with red PVC resin for safety and clarity. Suitable for 24 AWG wire, it supports up to 6A and 125V, with a locking feature to ensure secure connections across various electrical applications.
MOLEX 2177912103 Pre-Crimped Lead Specifications:
- Product Family: Pre-crimped Lead
- Series: 217791
- Assembly Configuration: Connector to Connector
- Cable Length: 225.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PVC
- Net Weight: 0.633 grams
- Number of Rows: 1
- Packaging Type: Bag
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 0.95mm-1.40mm
- Wire Size AWG: 24
- Wire/Cable Type: Suitable for 24 AWG cable
- Current - Maximum per Contact: 6.0A
- Voltage - Maximum: 125V
- Material Info: Copper Alloy, Tin Plating, PVC Insulation
- Reference - Drawing Numbers: 2177911101-000
- RoHS & ELV: Compliant, Not Low-Halogen
- Halogen-Free: No
Buy the Molex Series 217791 Pre-Crimped Lead: 2177912103
Enhance your wiring projects with the Molex Series 217791 pre-crimped lead, featuring a female-to-pigtail connector, 1.8 mm pitch, and 24 AWG capacity. Made from robust copper alloy and protected by tin plating, these leads ensure reliable contact and long-term performance. The 225 mm insulated cable in red PVC improves safety and visibility, making assembly straightforward with crimp or compression termination. Support up to 6A and 125V for various electrical applications. Order online now for quick, dependable delivery.
Order your Molex Series 217791 pre-crimped lead today and secure reliable electrical connections with durable copper alloy and tin-plated contacts.
Frequently Asked Questions
Where can I buy MOLEX 2177912103?
You can click on the BUY or RFQ button to purchase 2177912103 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2177912103?
You can download the 2177912103 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2177912103?
MOLEX
