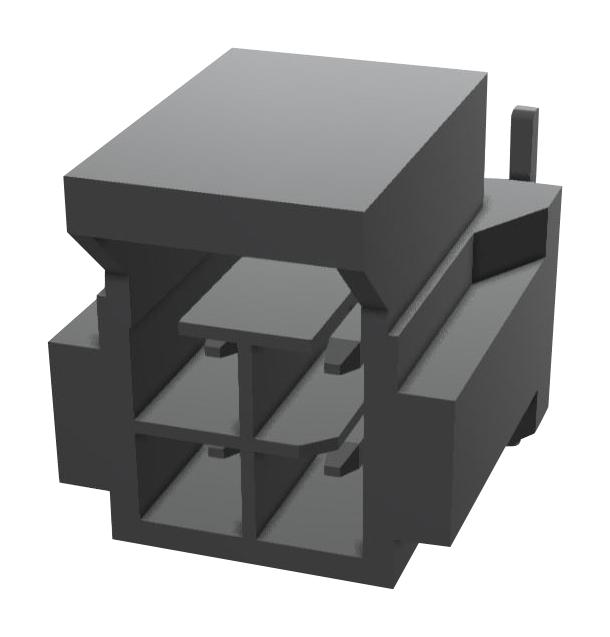

MOLEX 1054291104 Nano-Fit Power Connector
The Nano-Fit Vertical Header is a surface mount connector with a 2.50mm pitch, designed for power applications. It features dual-row, 4 circuits, with 0.76-micron tin plating, and is glow-wire capable. Made of thermoplastic resin with brass contacts plated in gold and tin, it supports up to 6.5A current per contact and a maximum voltage of 250V AC. Rated for operation between -40°C and +115°C, it provides reliable, high-performance connectivity for electronic systems, and is RoHS and REACH compliant, suitable for compact, high-density power connections.
MOLEX 1054291104 Nano-Fit Power Connector Specifications:
- Pitch: 2.50mm
- Number of Rows: 2
- Circuits (Loaded): 4
- Circuits (Maximum): 4
- Color - Resin: Black
- Durability (Mating Cycles Max): 50
- Glow-Wire Capable: Yes
- Contact Material: Brass
- Plating Mating: Gold
- Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Maximum Current Per Contact: 6.5A
- Maximum Voltage: 250V AC (RMS)
- Operating Temperature Range: -40°C to +115°C
- Dimensions: Length varies, typical tail length approximately 2.50mm
- Packaging: Embossed Tape on Reel
- Physical Characteristics: Vertical orientation, surface mount, 0.76-micron tin plating
- Certifications: RoHS, REACH, China RoHS, Halogen-Free, Low-Halogen
Buy the Molex Series Nano-Fit Power Connectors: 1054291104
Purchase the Nano-Fit Power Connector from Molex online today and enjoy high-quality, reliable power connections. Featuring a 2.50mm pitch, dual-row design, and tin-plated contacts, this surface mount connector supports up to 6.5A per contact, ensuring efficiency in compact electronic assemblies. Its glow-wire capability and RoHS compliance make it suitable for a wide range of applications, including high-density power systems requiring durability and safety. Order now to ensure fast delivery and high performance in your next project.
Buy Molex 1054291104 now and experience reliable, high-density power connectivity with durable high-current contacts.
Frequently Asked Questions
Where can I buy MOLEX 1054291104?
You can click on the BUY or RFQ button to purchase 1054291104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054291104?
You can download the 1054291104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054291104?
MOLEX
